Parts Location (07/2015 -): Illustration

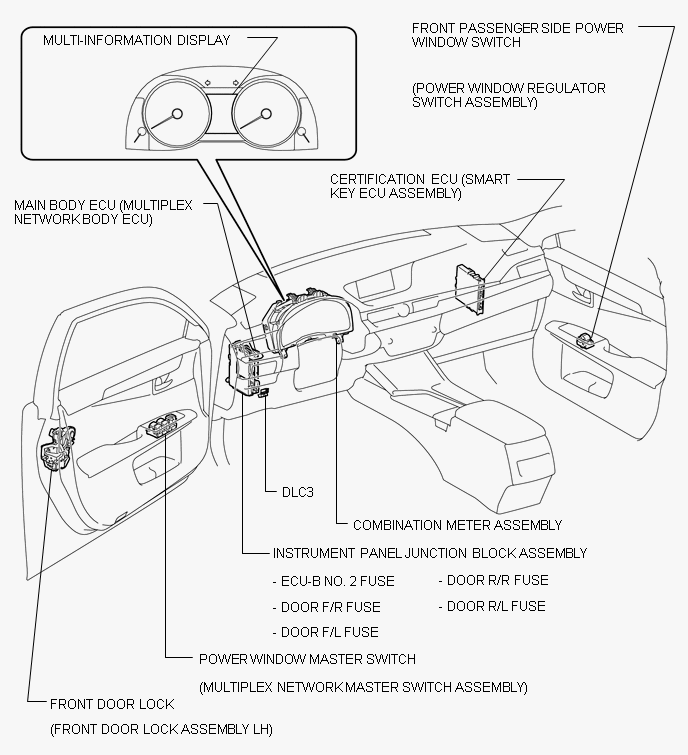

Fig 1: Power Window Control Parts Location (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

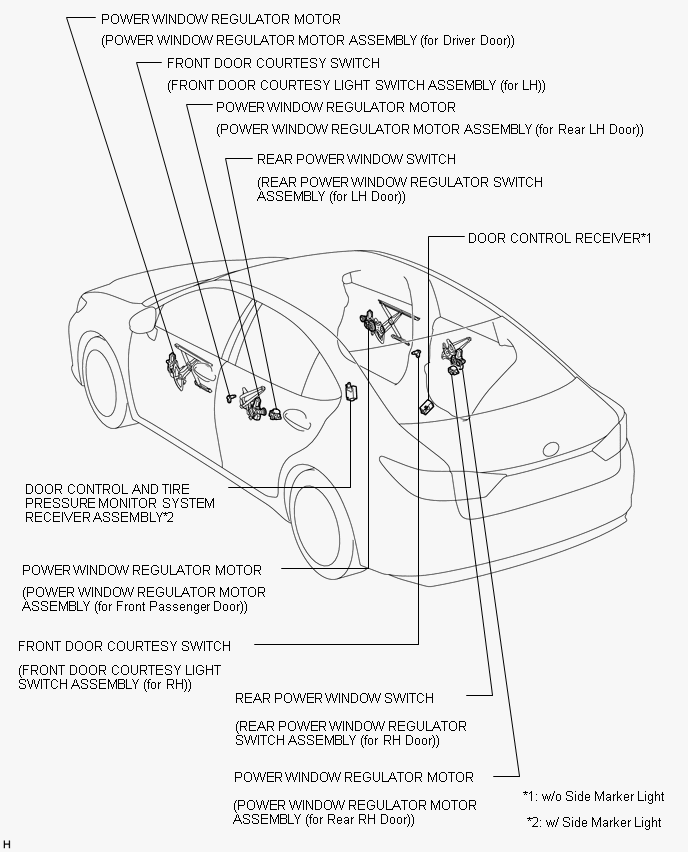

Fig 1: Power Window Control Parts Location (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
