Unable to Unlock Steering Wheel (Engine cannot Start) [07/2015 - ]: Wiring Diagram

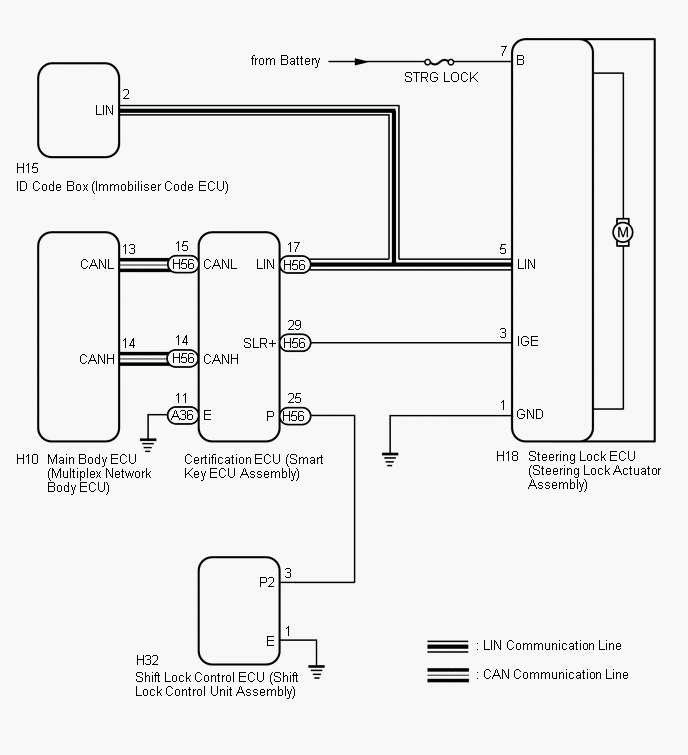

Fig 1: Shift Lock Control ECU Circuit Diagram

GTY681708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
