DTC B2782: Power Source Control ECU Malfunction [07/2015 - ]: Wiring Diagram

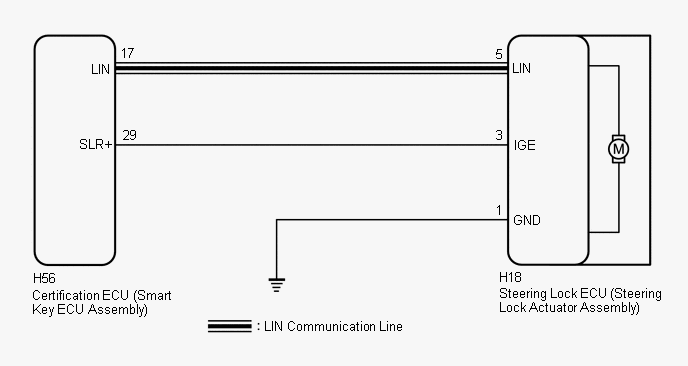

Fig 1: Steering Lock Actuator Assembly ECU (2 Of 2)

GTY624172

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
