DTC B1783: Rear Occupant Classification Sensor RH Circuit Malfunction [07/2015 - ]: Wiring Diagram

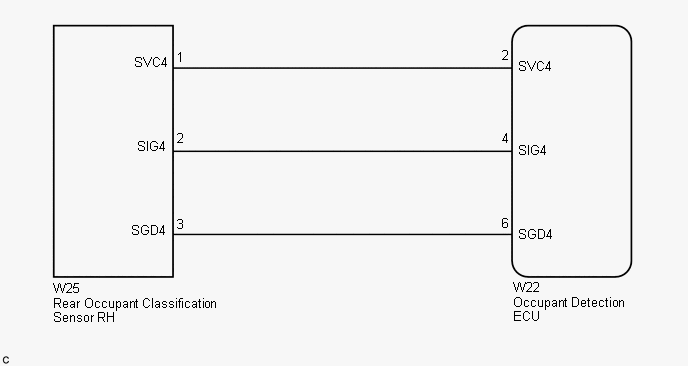

Fig 1: Rear Occupant Classification Sensor RH

GTY651359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
