Removal [07/2015 - ]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1

  2. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)

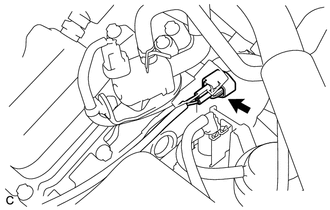

    1. Disconnect the air fuel ratio sensor connector.
      GTY319083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

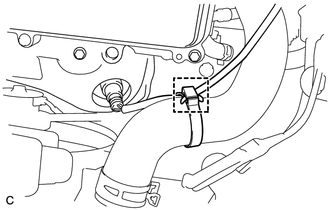

    2. Remove the hose clamp.
      GTY319090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

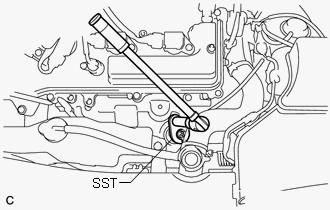

    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
      GTY666155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [07/2015 - ] )

  5. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

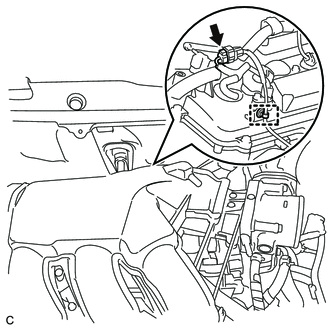

    1. Disconnect the air fuel ratio sensor connector.
      GTY318654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the harness clamp.

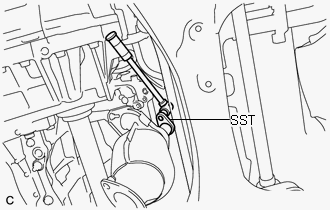

    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
      GTY626481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
