Power Seat Power Easy Access System Function does not Operate (07/2015 -): Wiring Diagram

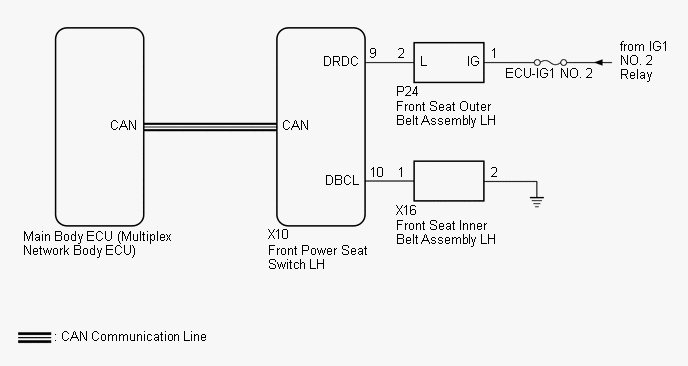

Fig 1: Power Seat CAN Circuit Wiring Diagram (LH)

GTY650639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
