Front Power Seat does not Operate with Front Power Seat Switch (07/2015 -): Wiring Diagram

  1. for Driver

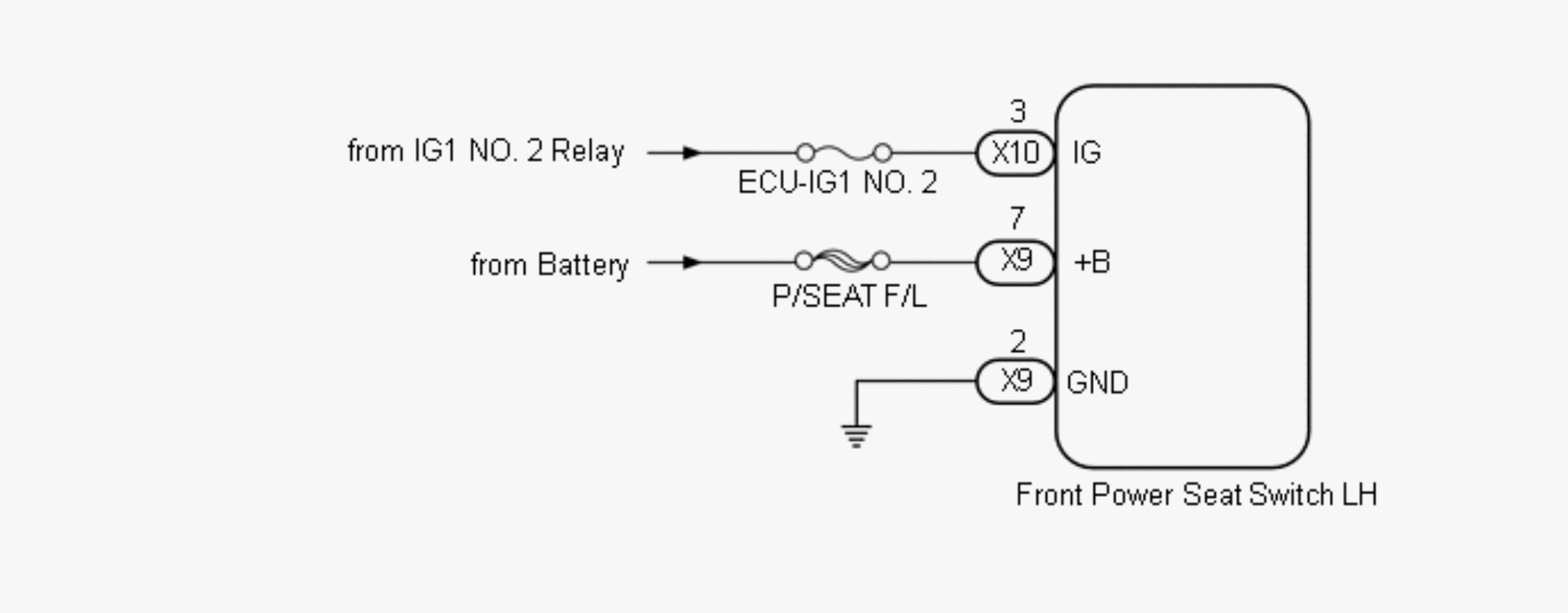

    Fig 1: Front Power Seat Switch Wiring Diagram (LH)
    GTY648047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for Front Passenger

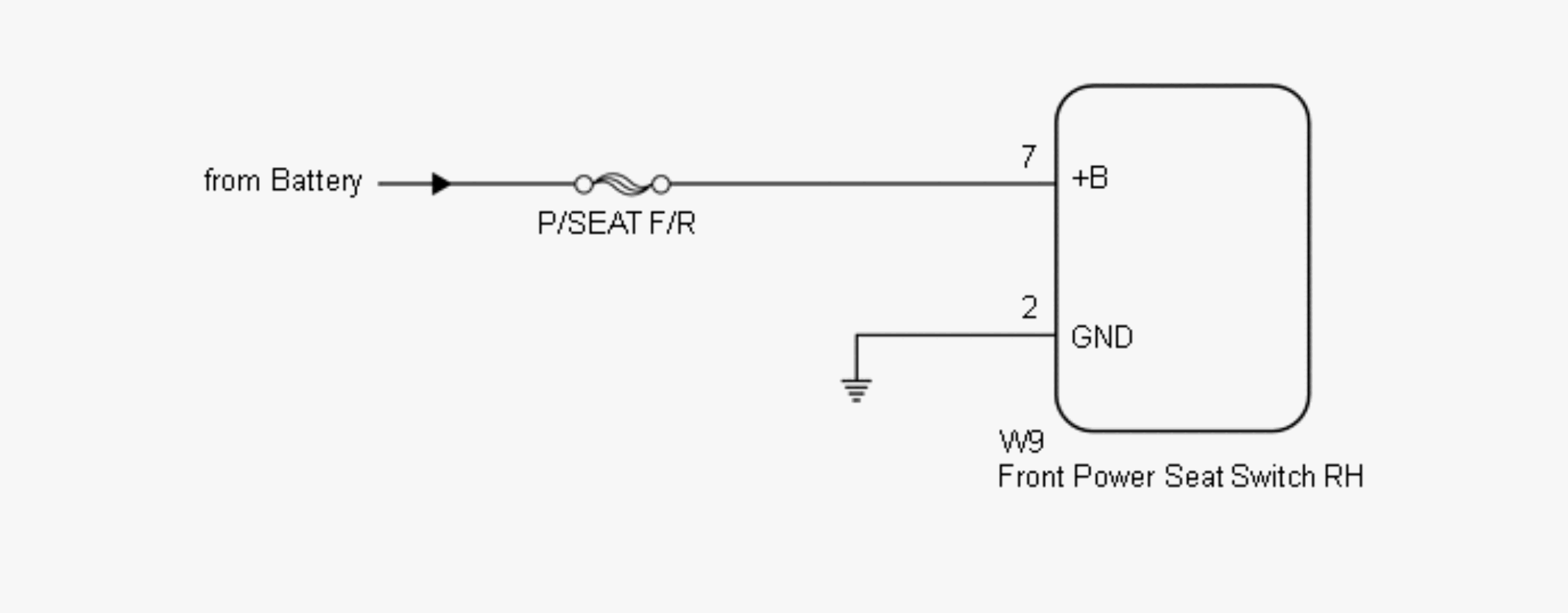

    Fig 2: Front Power Seat Switch Wiring Diagram (RH)
    GTY645237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
