DTC B2284: Brake Signal Malfunction (07/2015 -): Wiring Diagram

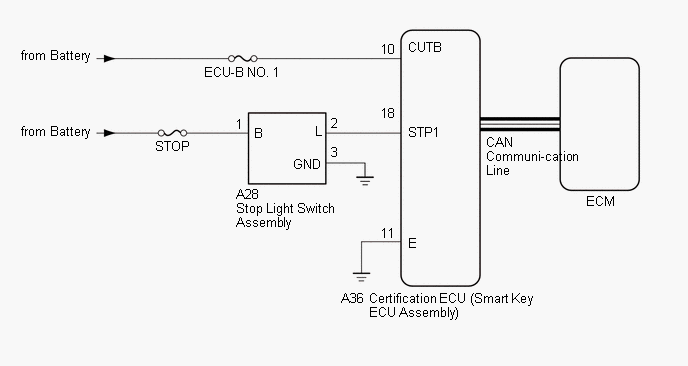

Fig 1: Smart Access System (Start Function) Wiring Diagram

GTY682980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
