DTC B27A8: Open in Outside Luggage Compartment Electrical Key Antenna Circuit (07/2015 -): Wiring Diagram

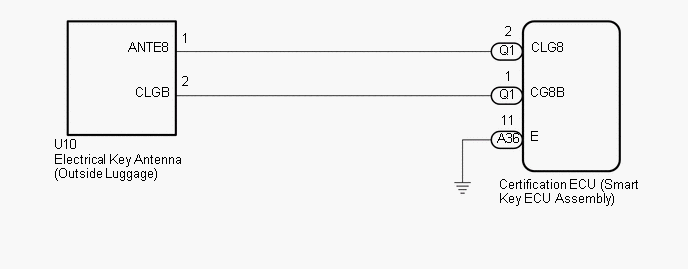

Fig 1: Key Antenna And Certification ECU Wiring Diagram
GTY671557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
