USB Audio System Recognition/Play Error (07/2015 - 08/2016): Wiring Diagram

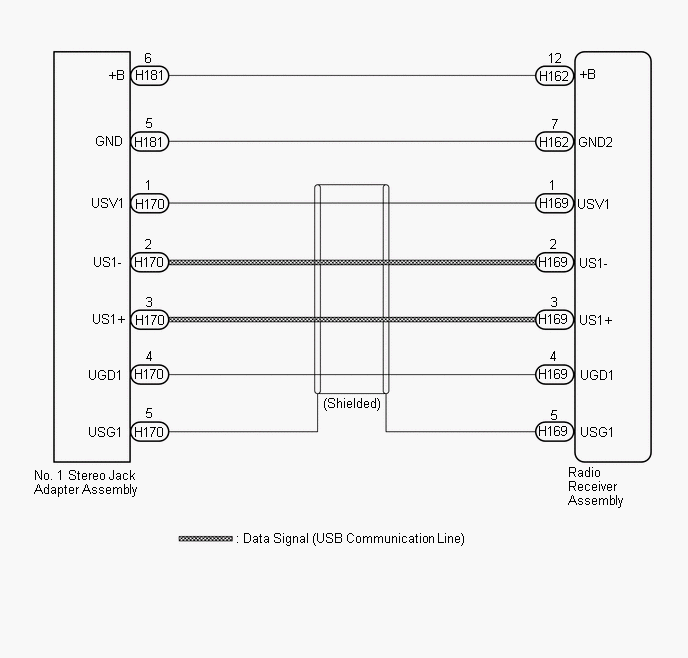

Fig 1: Data Signal USB Communication Line Wiring Diagram

GTY628527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
