Navigation Receiver Assembly Power Source Circuit (07/2015 - 08/2016): Wiring Diagram

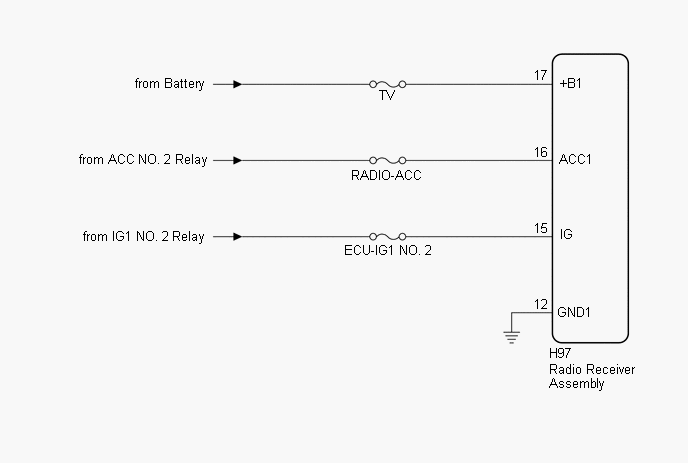

Fig 1: Navigation Power Source Wiring Diagram

GTY668741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
