Microphone Circuit between Microphone and Navigation Receiver Assembly (07/2015 - 08/2016): Wiring Diagram

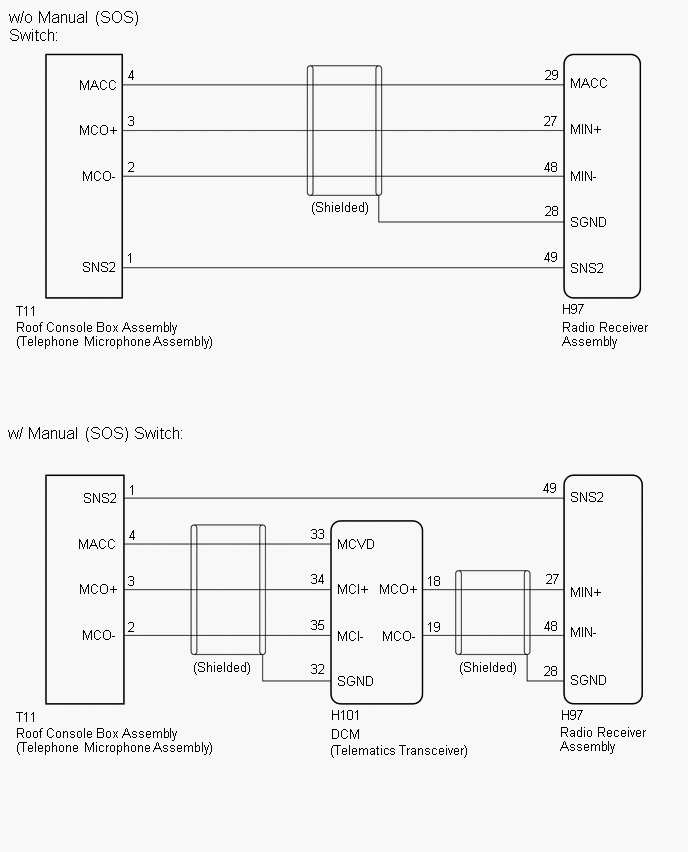

Fig 1: Microphone Wiring Diagram

GTY635868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
