Display does not Dim when Light Control Switch is Turned ON (08/2016 -): Wiring Diagram

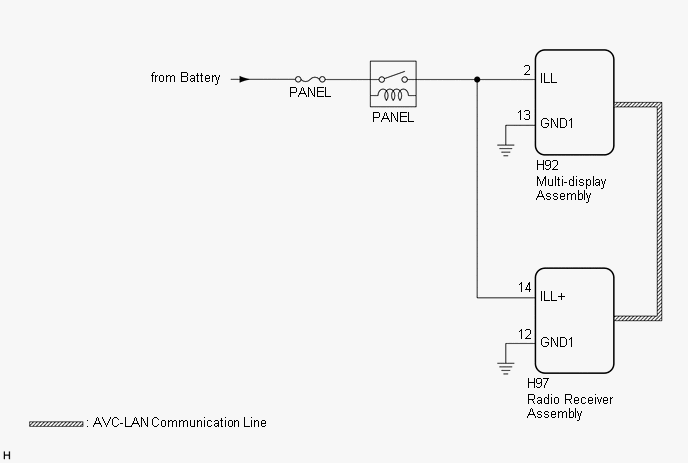

Fig 1: AVC-LAN Communication Wiring Diagram

GTY631853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
