DCM Data Signal Circuit between Navigation ECU and DCM [07/2015 - ]: Wiring Diagram

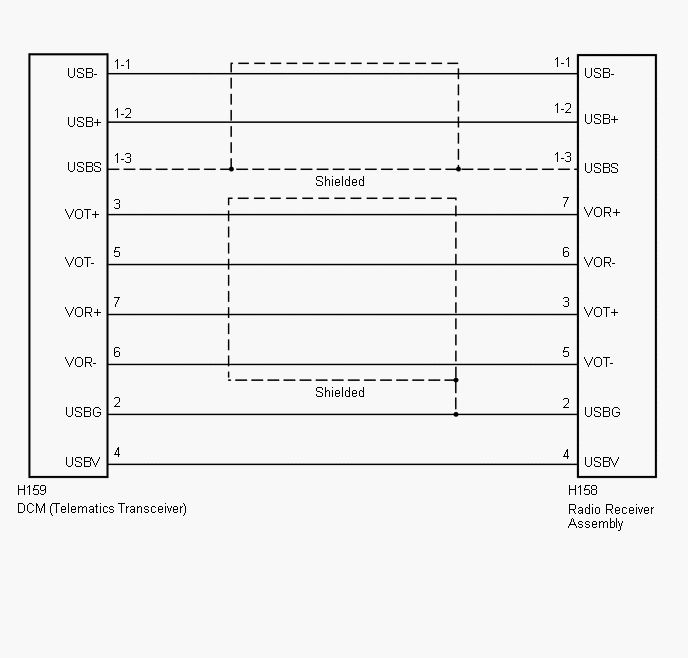

Fig 1: DCM Data Signal Circuit between Navigation ECU and DCM Circuit Diagram
GTY639750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
