Power Source Circuit (07/2015 -): Procedure
- CHECK HARNESS AND CONNECTOR (POWER SOURCE VOLTAGE)
- Disconnect the T12 forward recognition camera connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

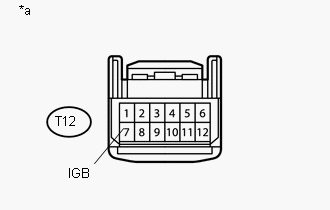

Tester Connection Condition Condition T12-7 (IGB) - Body ground Engine switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Forward Recognition Camera) - Turn the engine switch off.
- Reconnect the T12 forward recognition camera connector.
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result: OK
OK
See step 2
- CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION CAMERA - BODY GROUND)
- Disconnect the T12 forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

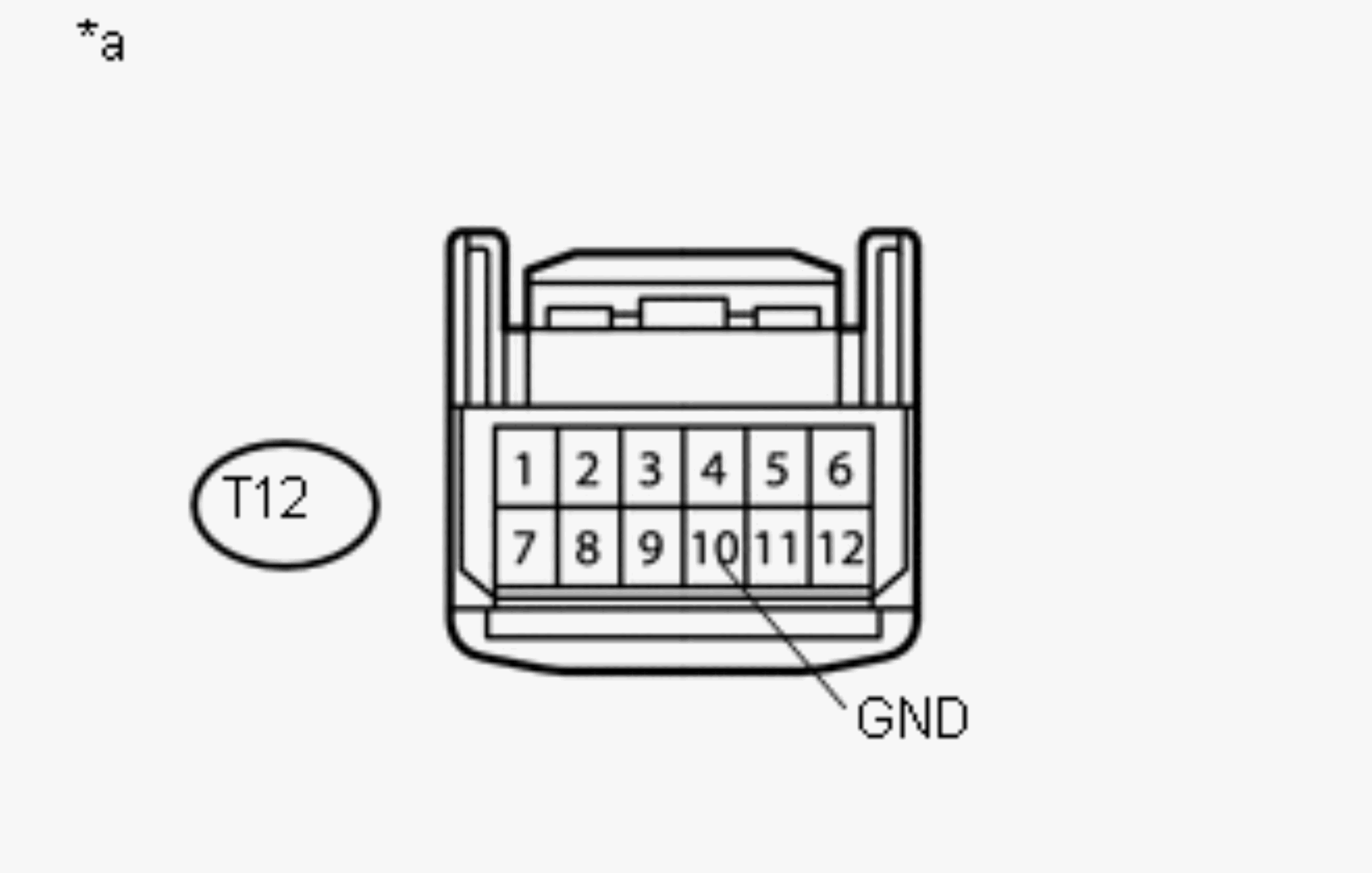

Tester Connection Condition Condition T12-10 (GND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Forward Recognition Camera) - Reconnect the T12 forward recognition camera connector.
Result: OK
OK
PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
(Refer to PROBLEM SYMPTOMS TABLE (07/2015 -) )
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
