Open in CAN Main Bus Line (07/2015 -): Wiring Diagram

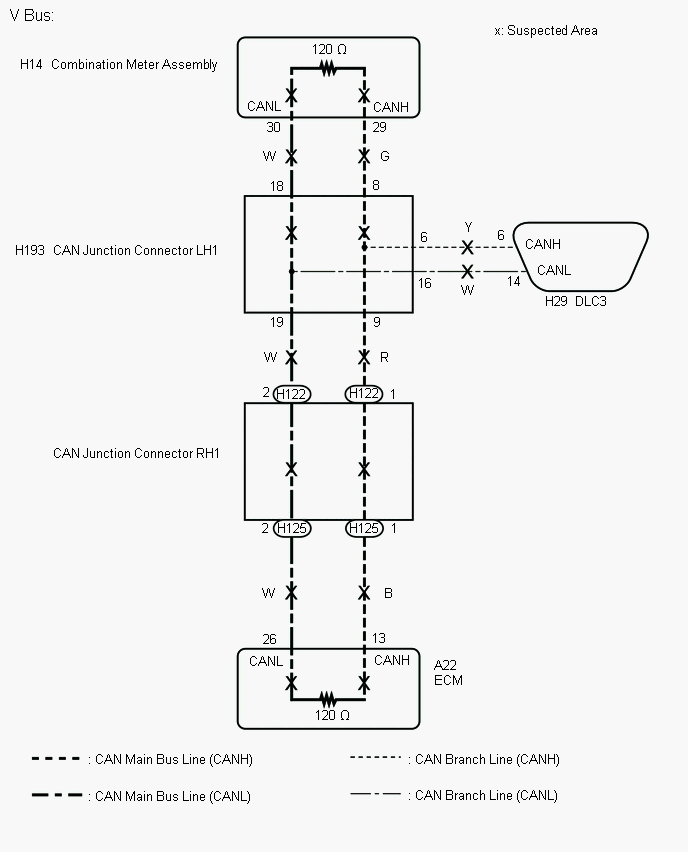

Fig 1: CAN Junction Connector Wiring Diagram

GTY636620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
