DTC U1002: Lost Communication with Gateway Module (Main Body ECU) (07/2015 -): Wiring Diagram

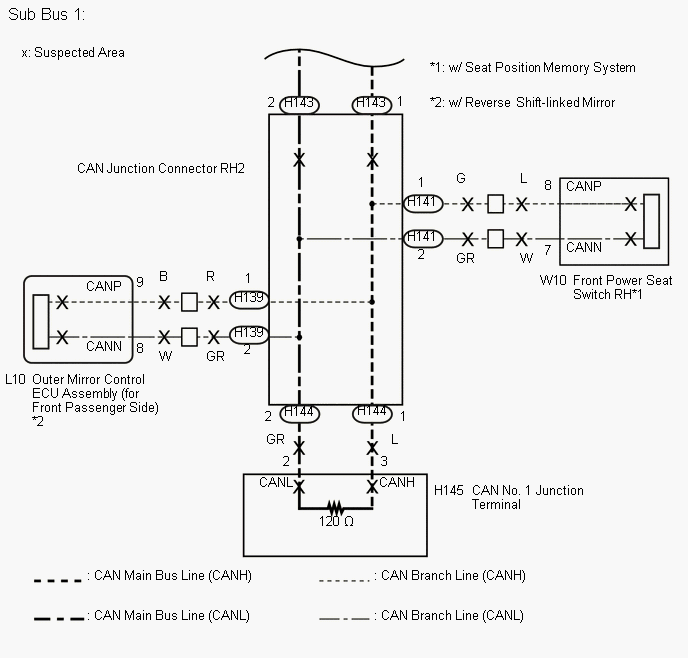

Fig 1: Multiplex Network Body ECU Wiring Diagram (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

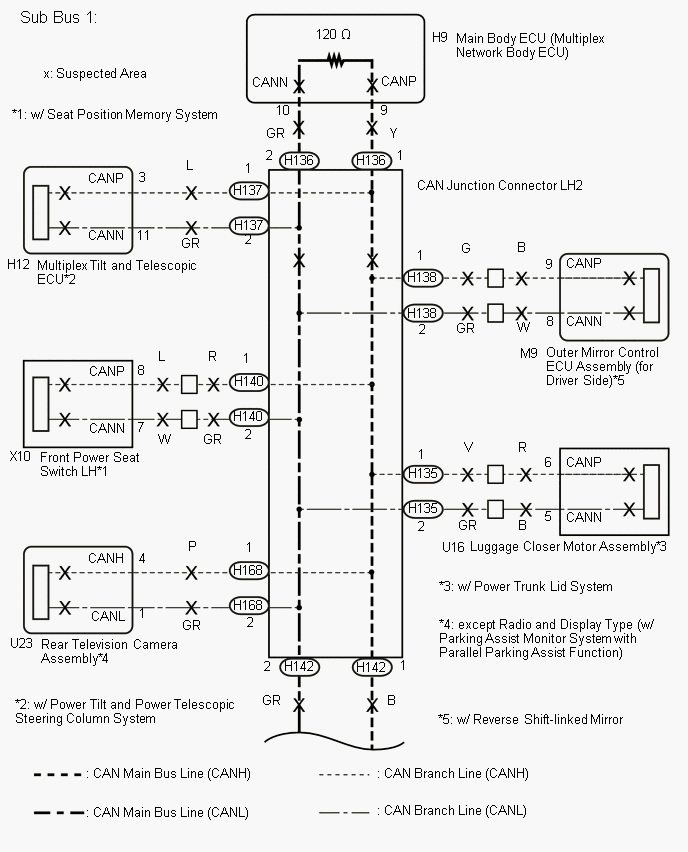

Fig 2: Multiplex Network Body ECU Wiring Diagram (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
