DCM Communication Stop Mode (07/2015 -): Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the H101 DCM (telematics transceiver) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H101-15 (CANP) - H101-16 (CANN)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to DCM (Telematics Transceiver)

Result:  NG

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (DCM (TELEMATICS TRANSCEIVER)

Result:  OK

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H101-4 (E) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to DCM (Telematics Transceiver)

2. Reconnect the cable to the negative (-) battery terminal.

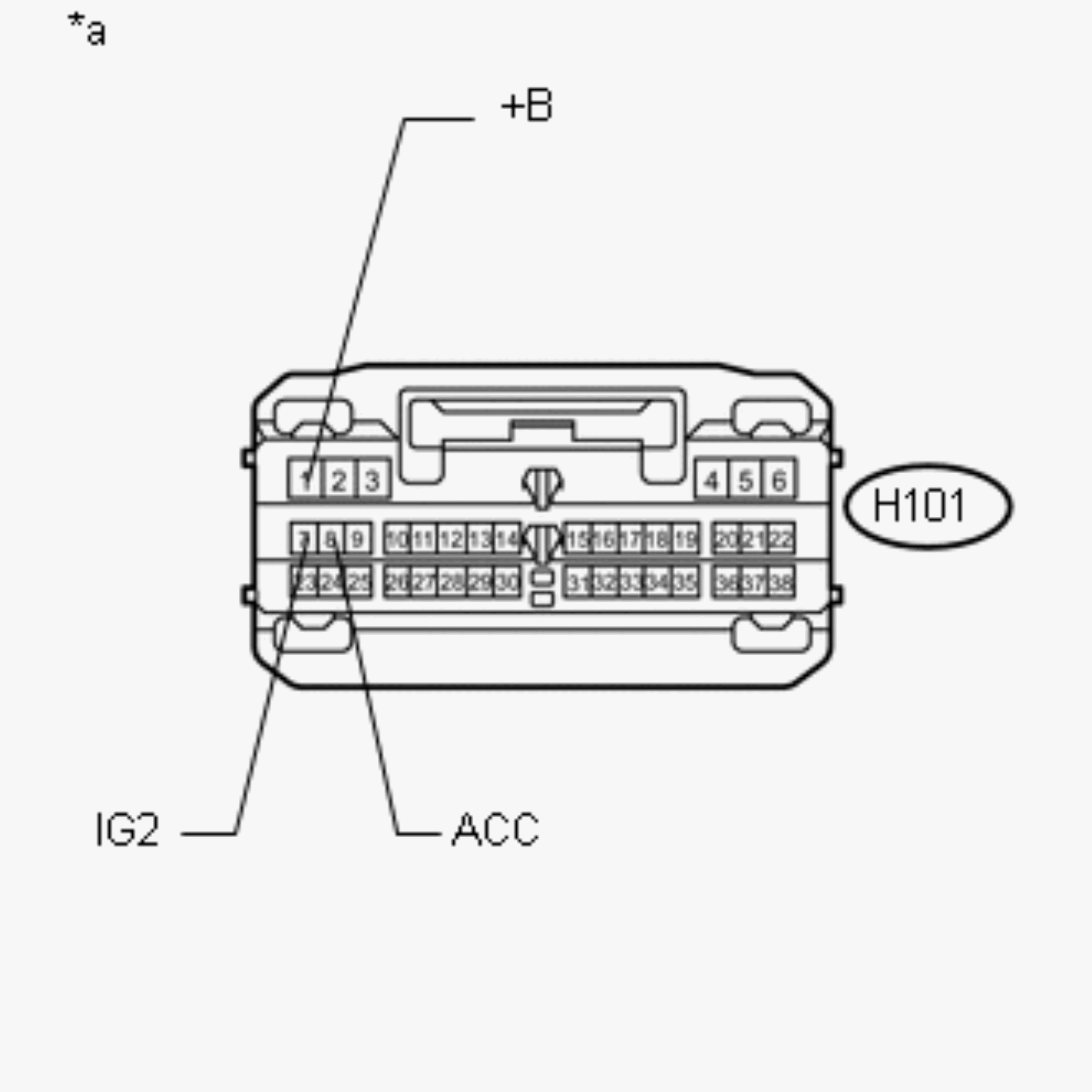

3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H101-1 (+B) - Body ground	Always	11 to 14 V
   H101-7 (IG2) - Body ground	Engine switch on (IG)	11 to 14 V
   H101-8 (ACC) - Body ground	Engine switch on (ACC)	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to DCM (Telematics Transceiver)

Result:  OK

OK

REPLACE DCM (TELEMATICS TRANSCEIVER)

(Refer to REMOVAL (07/2015 -) )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
