Open in Bus 1 Main Bus Line (07/2015 -): Wiring Diagram

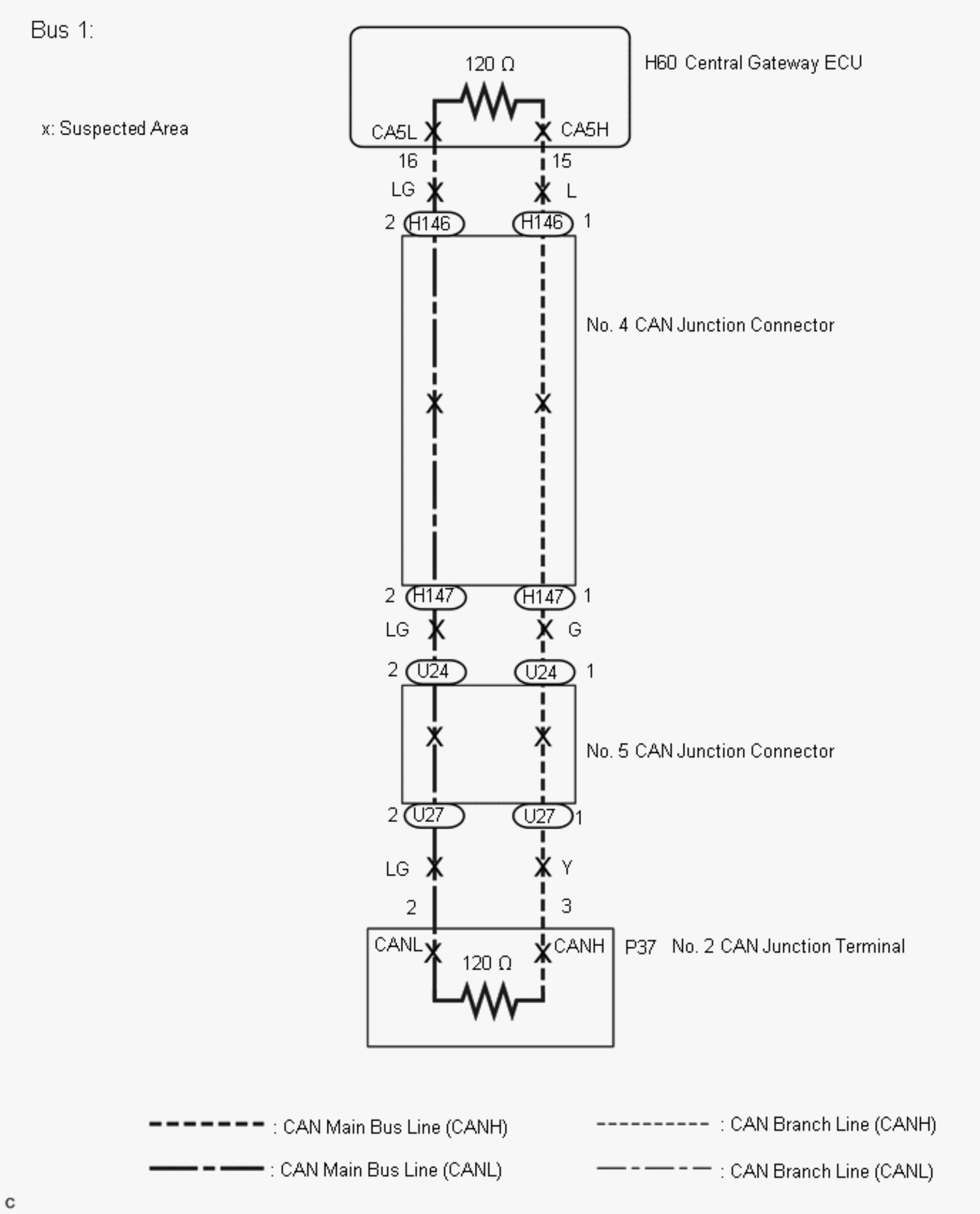

Fig 1: CAN Communication System Wiring Diagram

GTY644143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
