Driving Support ECU Communication Stop Mode (07/2015 -): Wiring Diagram

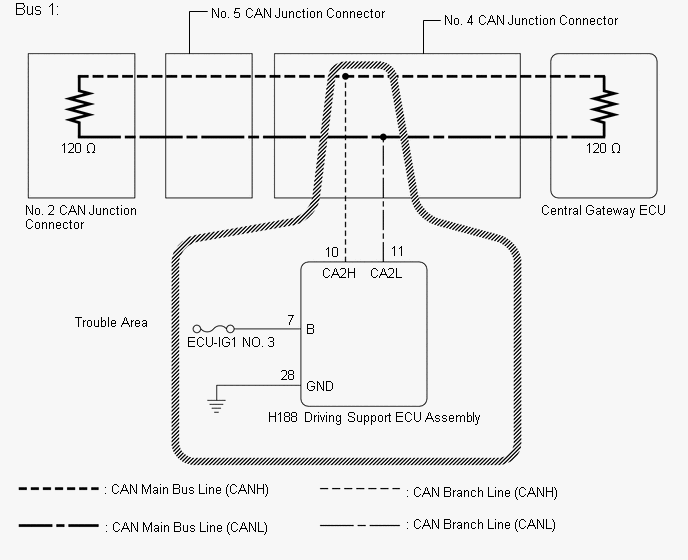

Fig 1: Driving Support ECU Wiring Diagram

GTY621201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
