Driving Support ECU Communication Stop Mode (07/2015 -): Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the H188 driving support ECU assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Value
   H188-10 (CA2H) - H188-11 (CA2L)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

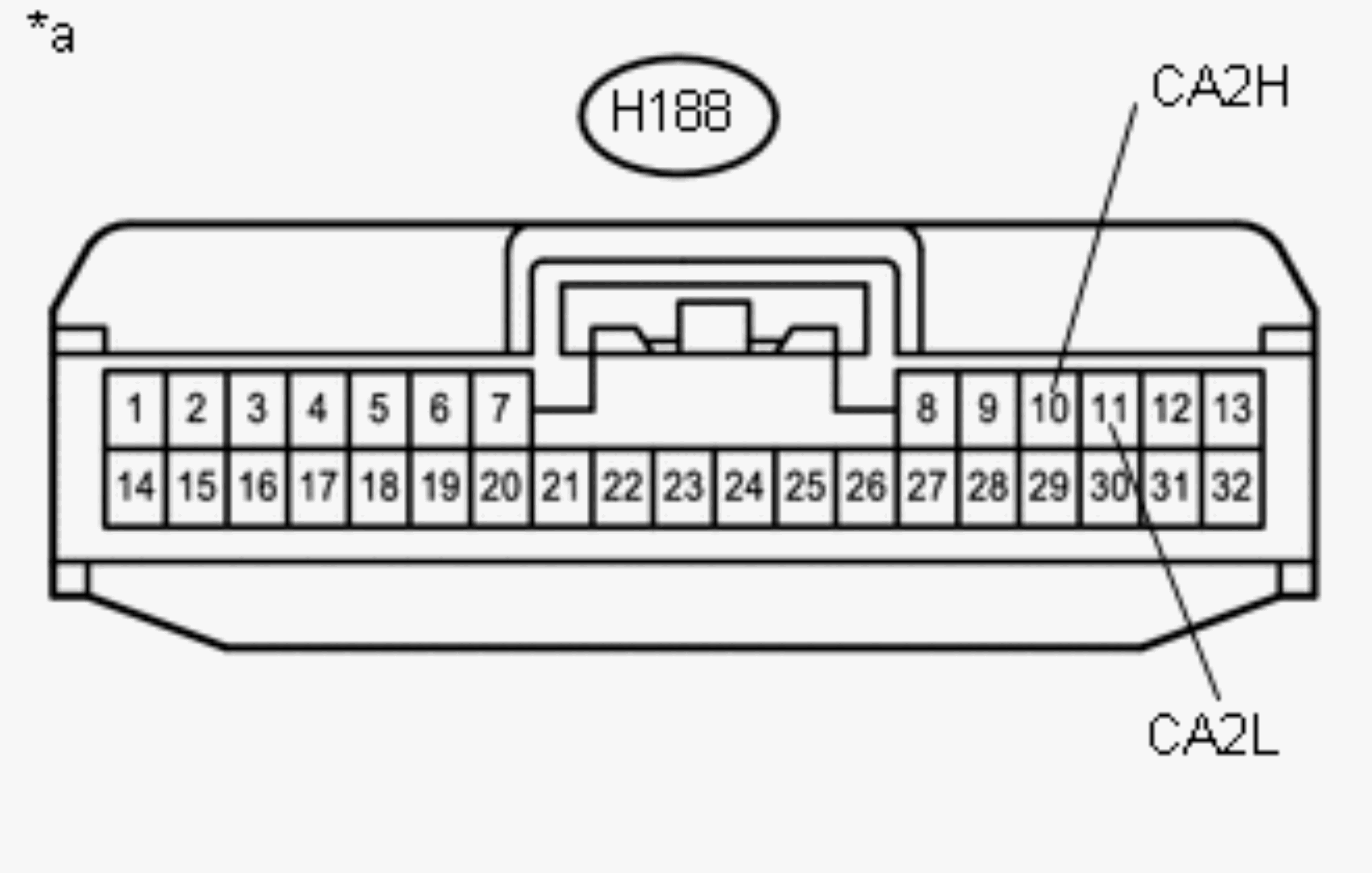

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Driving Support ECU Assembly)

Result:  NG

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (DRIVING SUPPORT ECU ASSEMBLY)

Result:  OK

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Value
   H188-28 (GND) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

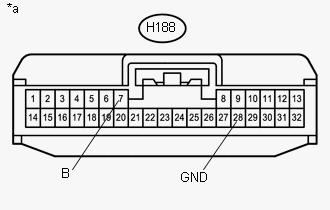

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Driving Support ECU Assembly)

2. Reconnect the cable to the negative (-) battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Value
   H188-7 (B) - Body ground	Engine switch on (IG)	11 to 14 V

Result:  OK

OK

REPLACE DRIVING SUPPORT ECU ASSEMBLY

(Refer to REMOVAL (07/2015 -) )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
