Steering Angle Sensor Communication Stop Mode (07/2015 -): Wiring Diagram

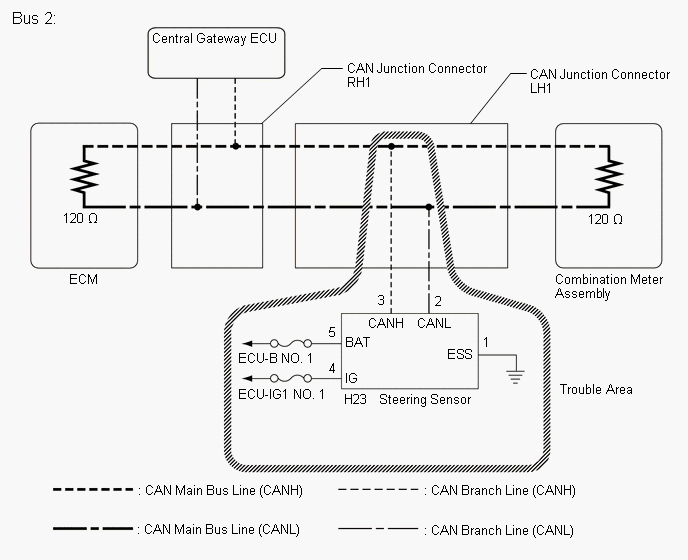

Fig 1: Steering Sensor Wiring Diagram

GTY626287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
