DTC U1002: Lost Communication with Gateway Module (Sensor Bus) (07/2015 -): Wiring Diagram

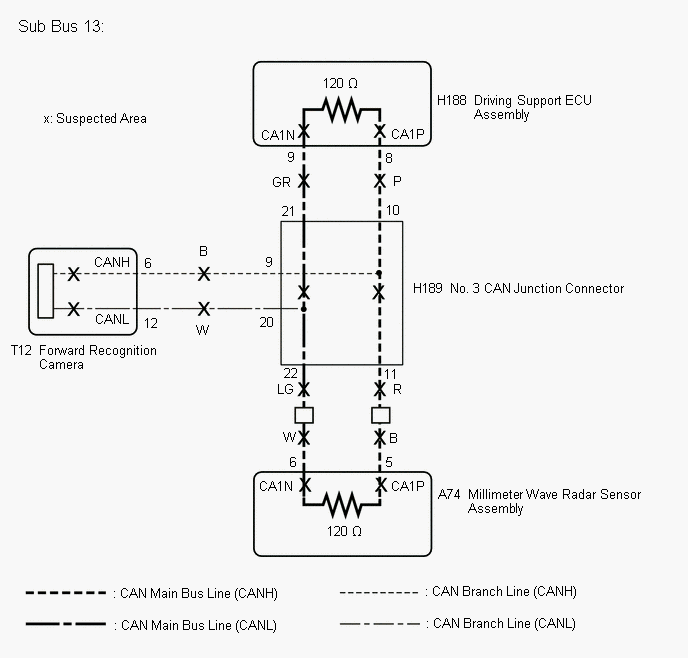

Fig 1: Driving Support ECU Assembly Wiring Diagram

GTY621296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
