DTC U023A: Lost Communication with Front Camera Module (07/2015 -): Wiring Diagram

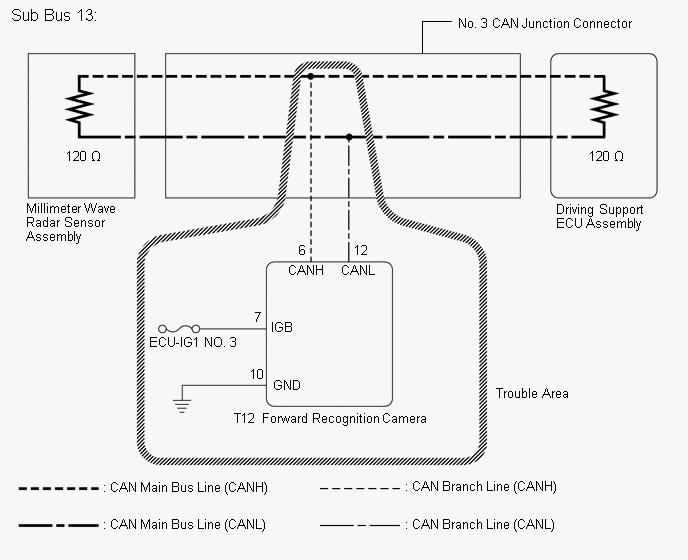

Fig 1: Forward Recognition Camera Wiring Diagram

GTY630937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
