DTC U0208: Lost Communication with "Seat Control Module A" (07/2015 -): Wiring Diagram

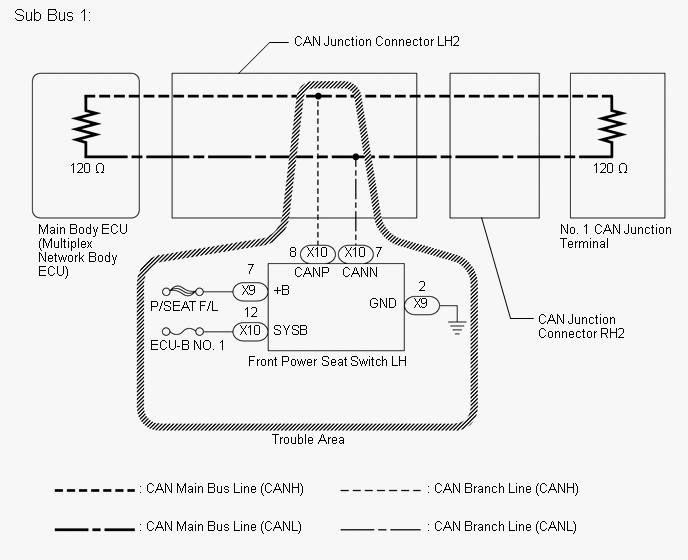

Fig 1: Front Power Seat Switch LH Wiring Diagram

GTY683628

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
