Combination Meter ECU Communication Stop Mode (07/2015 -): Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the H14 combination meter assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H14-29 (CANH) - H14-30 (CANL)	Cable disconnected from negative (-) battery terminal	108 to 132 Ω

   TEXT IN ILLUSTRATION

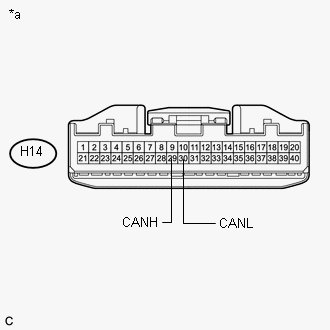

   *a	Front view of wire harness connector (to Combination Meter Assembly)

Result:  NG

NG

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (COMBINATION METER ASSEMBLY MAIN LINE)

Result:  OK

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H14-31 (ES) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION

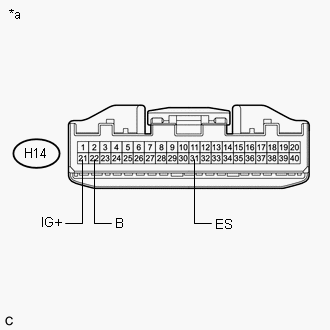

   *a	Front view of wire harness connector (to Combination Meter Assembly)

2. Reconnect the cable to the negative (-) battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H14-21 (IG+) - Body ground	Engine switch on (IG)	11 to 14 V
   H14-22 (B) - Body ground	Engine switch off	11 to 14 V

Result:  OK

OK

REPLACE COMBINATION METER ASSEMBLY

(Refer to REMOVAL (07/2015 -) )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
