Certification ECU Communication Stop Mode (07/2015 -): Wiring Diagram

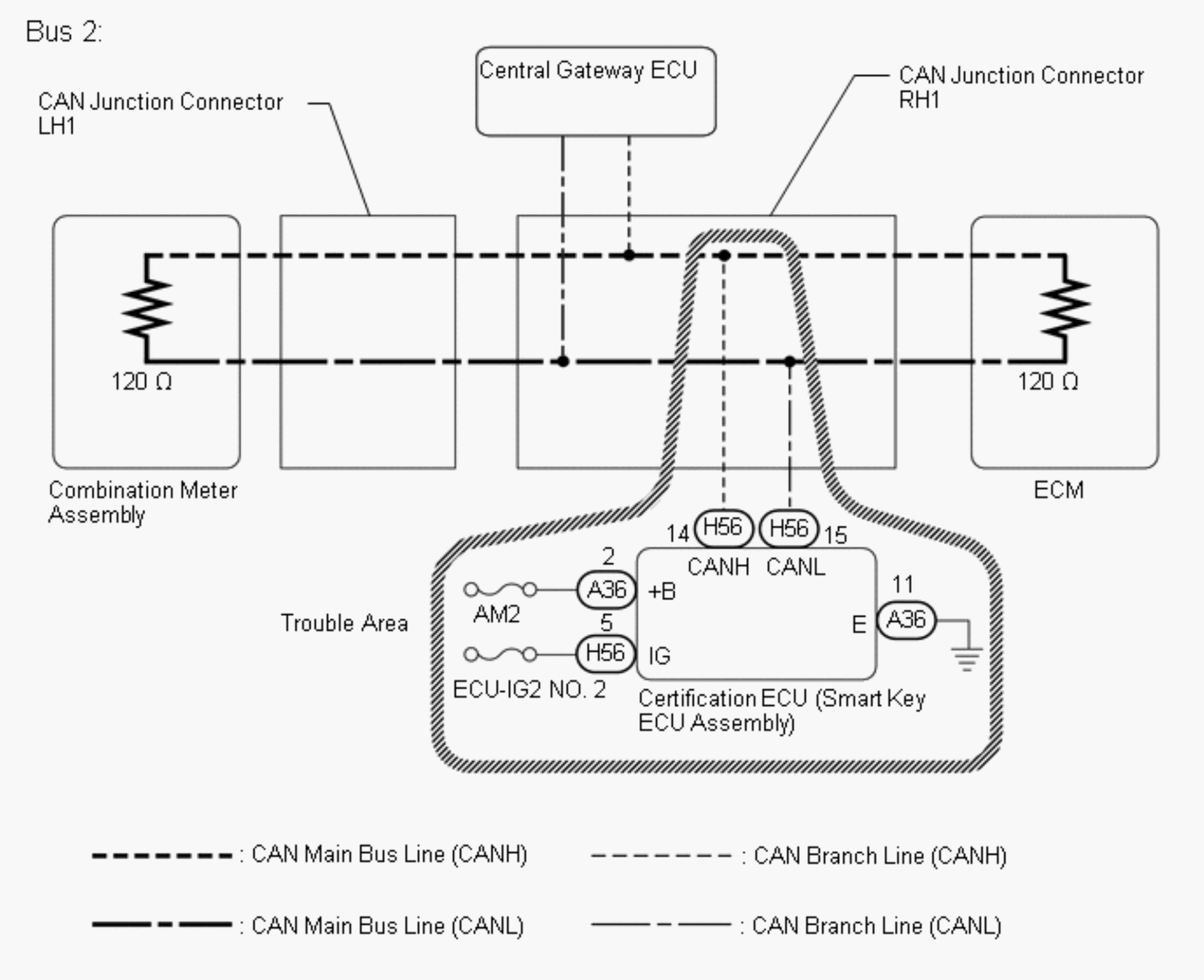

Fig 1: Certification ECU (Smart Key ECU Assembly) Wiring Diagram

GTY619162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
