Blind Spot Monitor Sensor Communication Stop Mode (07/2015 -): Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the U8 blind spot monitor sensor LH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

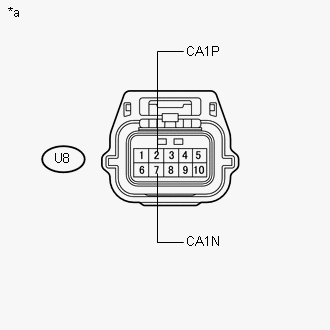

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Value
   U8-2 (CA1P) - U8-7 (CA1N)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

Result:  NG

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH)

Result:  OK

OK

See step  2

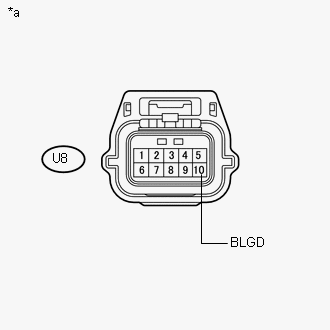

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Value
   U8-10 (BLGD) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

2. Reconnect the cable to the negative (-) battery terminal.

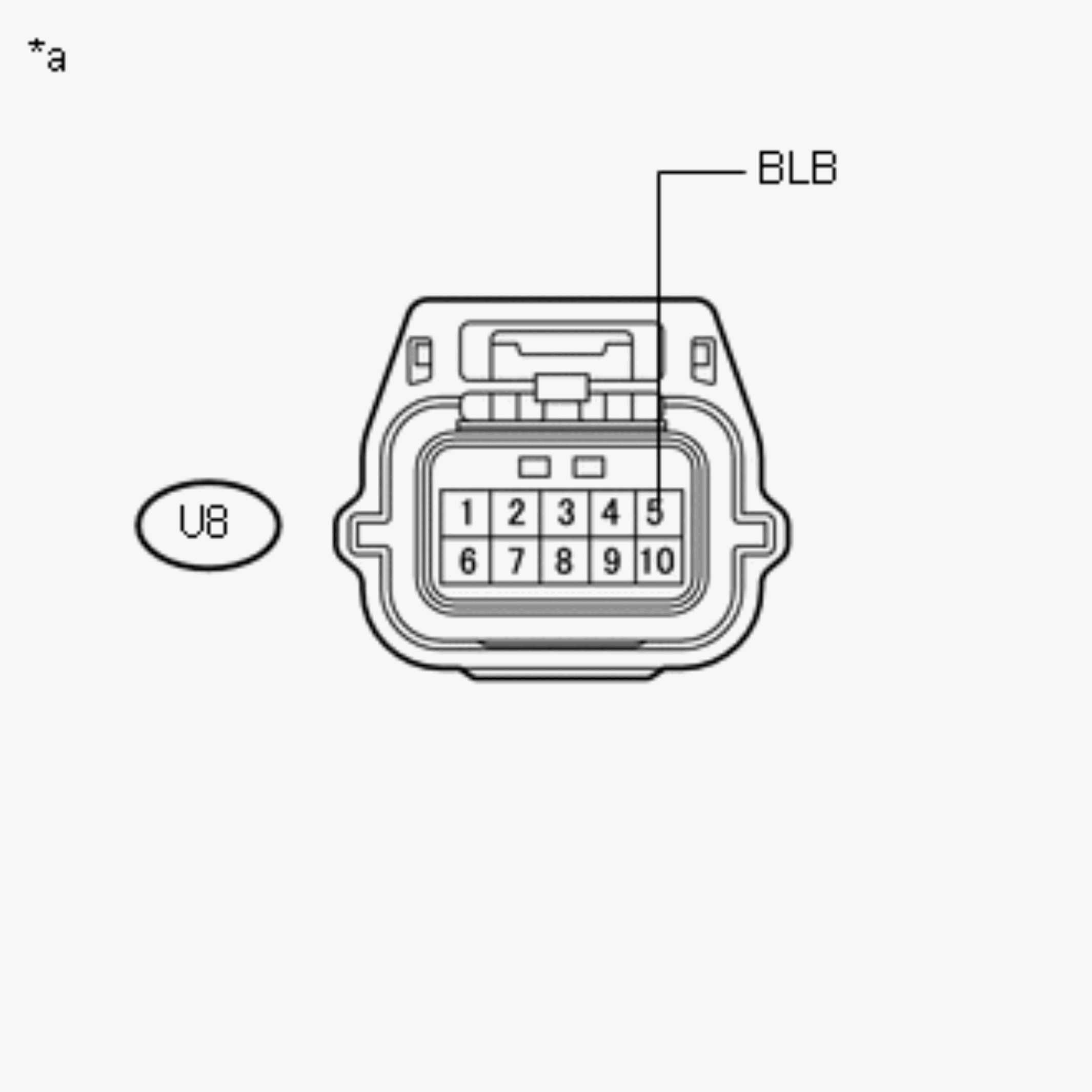

3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Value
   U8-5 (BLB) - Body ground	Engine switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

Result:  OK

OK

REPLACE BLIND SPOT MONITOR SENSOR LH

(Refer to REMOVAL (07/2015 -) )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
