Installation [07/2015 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILISER CODE ECU)

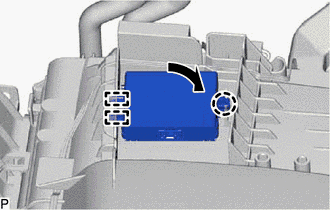

    1. Engage the 2 guides.
      GTY420172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the claw as shown in the illustration to install the ID code box (immobiliser code ECU).
  2. INSTALL AIR CONDITIONING UNIT ASSEMBLY (for TMK Made)

    (Refer to INSTALLATION [07/2015 - ] )

  3. INSTALL AIR CONDITIONING UNIT ASSEMBLY (for TMMK Made)

    (Refer to INSTALLATION [07/2015 - ] )

  4. REGISTER ECU CODE
    NOTE:

    If the ID code box (immobiliser code ECU) is replaced, register the ECU code and ECU communication ID (Refer to REGISTRATION [07/2015 - ] ).

  5. REGISTER ECU COMMUNICATION ID
    NOTE:

    If the ID code box (immobiliser code ECU) is replaced, register the ECU code and ECU communication ID (Refer to REGISTRATION [07/2015 - ] ).
