Components [07/2015 - ]: Illustration

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 9)
GTY640804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Manual Tilt / Column) (2 Of 9)
GTY412427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Power Tilt / Column) (3 Of 9)
GTY412332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

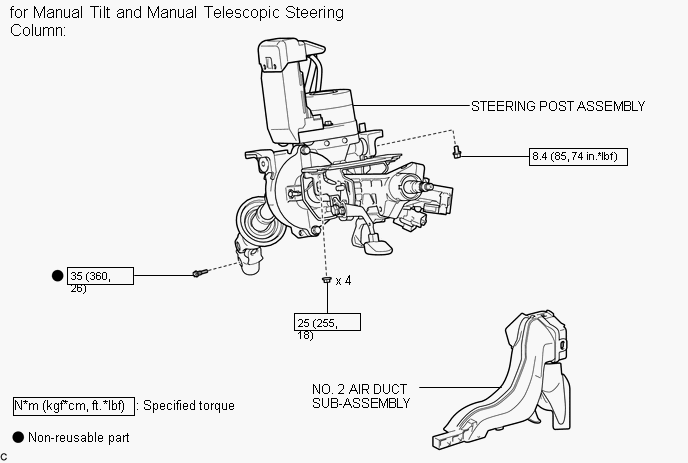

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Manual Tilt / Column) (4 Of 9)
GTY685136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Power Tilt / Column) (5 Of 9)
GTY660594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

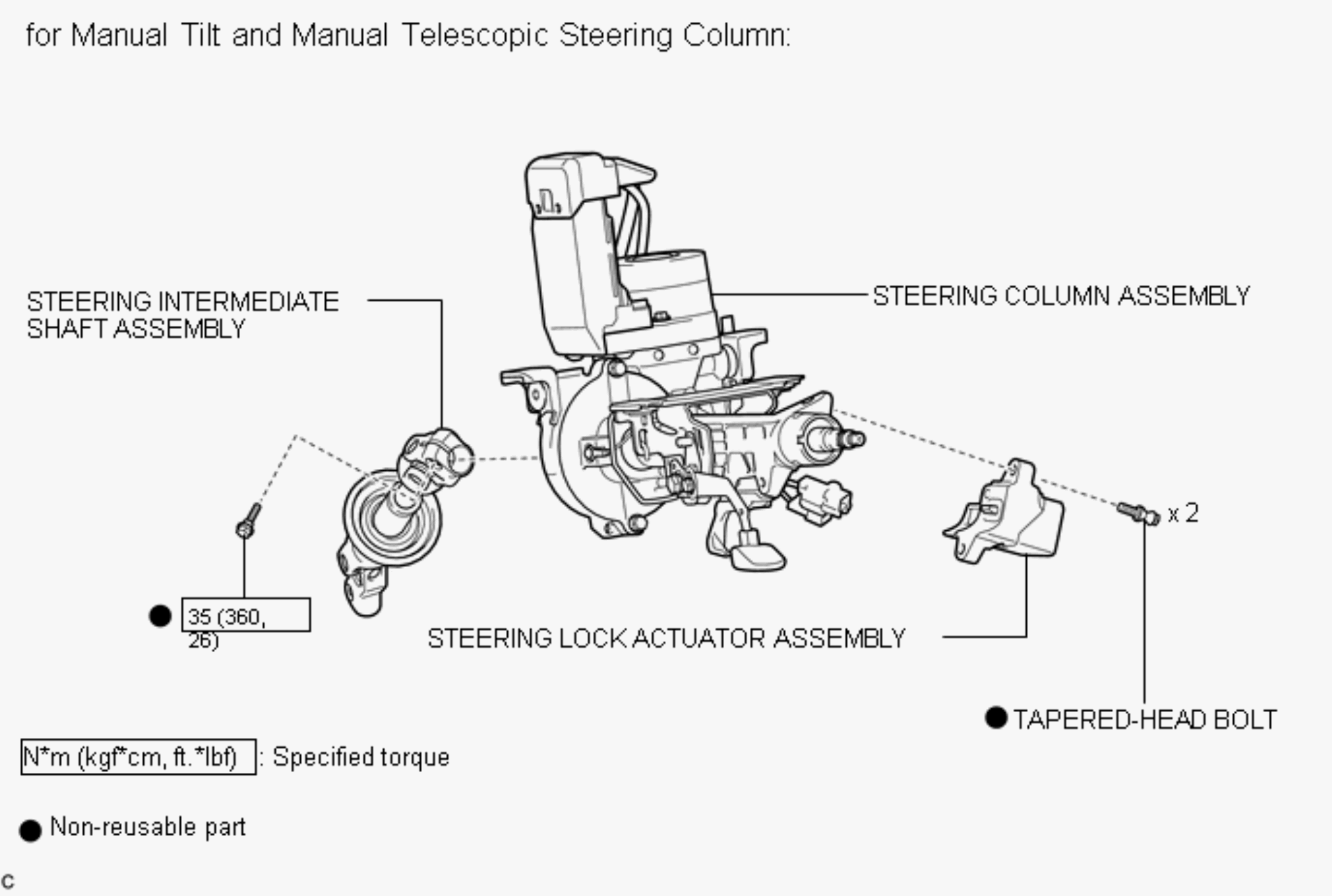

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Manual Tilt / Column) (6 Of 9)
GTY680201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

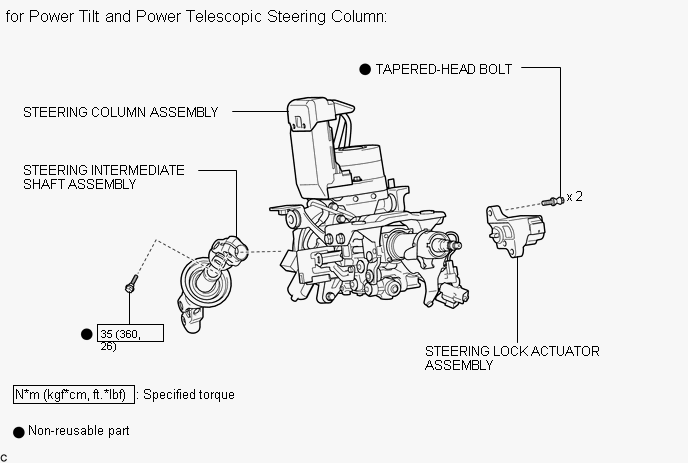

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Power Tilt / Column) (7 Of 9)
GTY656831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

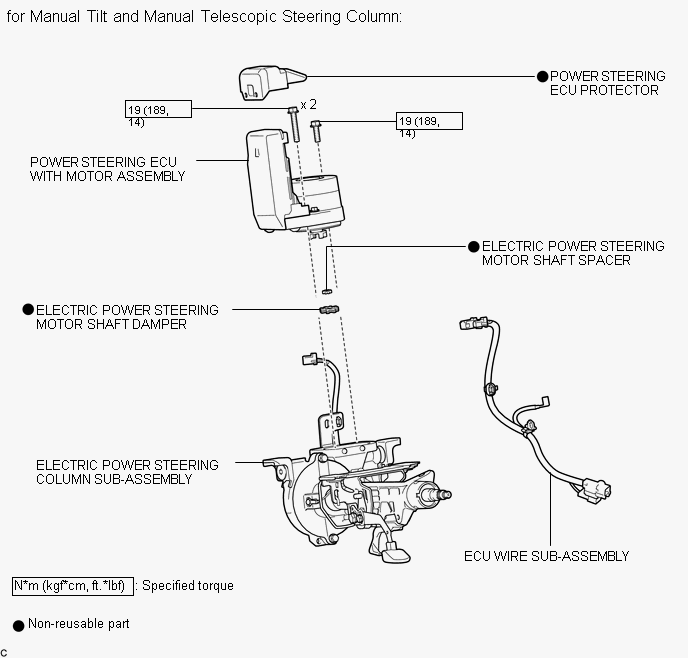

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Manual Tilt / Column) (8 Of 9)
GTY664735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

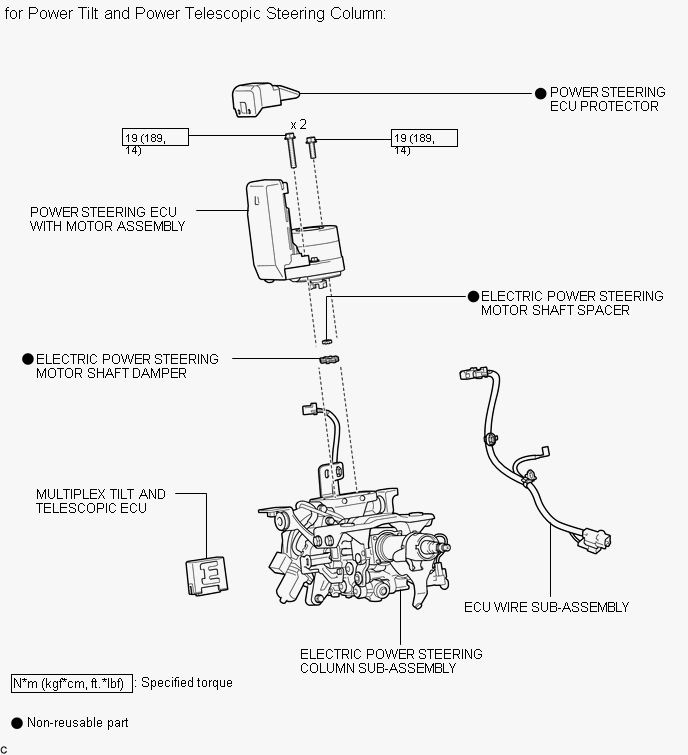

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (For Power Tilt / Column) (9 Of 9)
GTY657234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
