Removal [07/2015 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21

  2. REMOVE IGNITION COIL ASSEMBLY

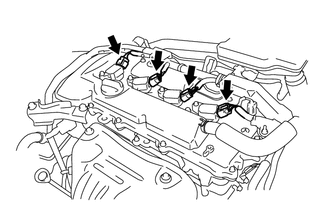

    1. Disconnect the 4 ignition coil assembly connectors.
      GTY315234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

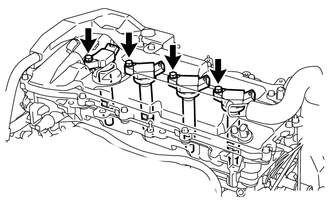

    2. Remove the 4 bolts and 4 ignition coil assemblies.
      GTY318275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SPARK PLUG

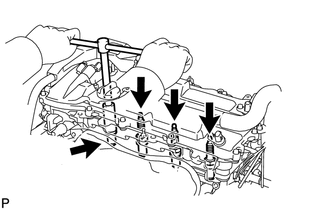

    1. Remove the 4 spark plugs.
      GTY318276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
