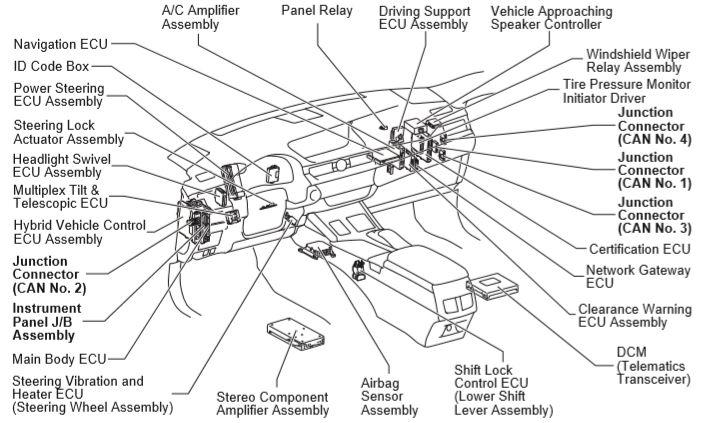

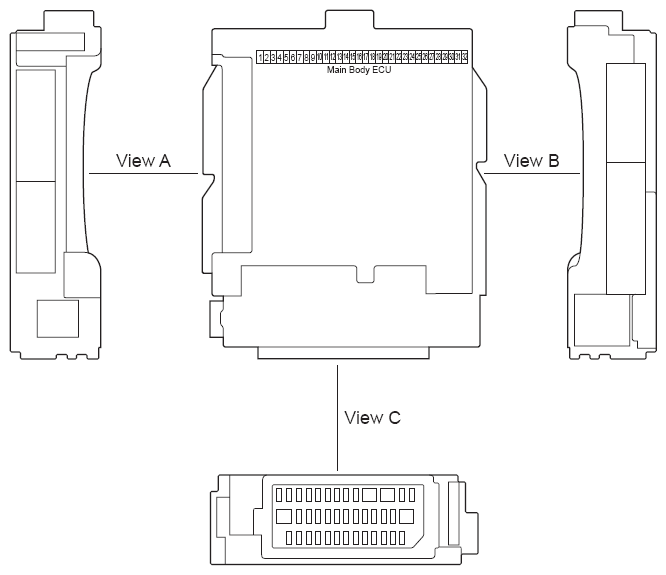

Instrument Panel Junction Block Assembly - Instrument Panel Reinforcement: Notes
For additional information, refer to Figure.

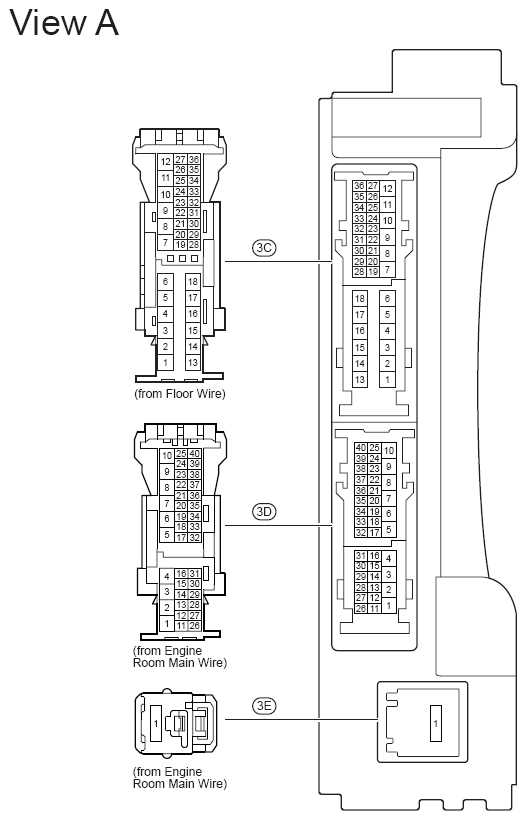

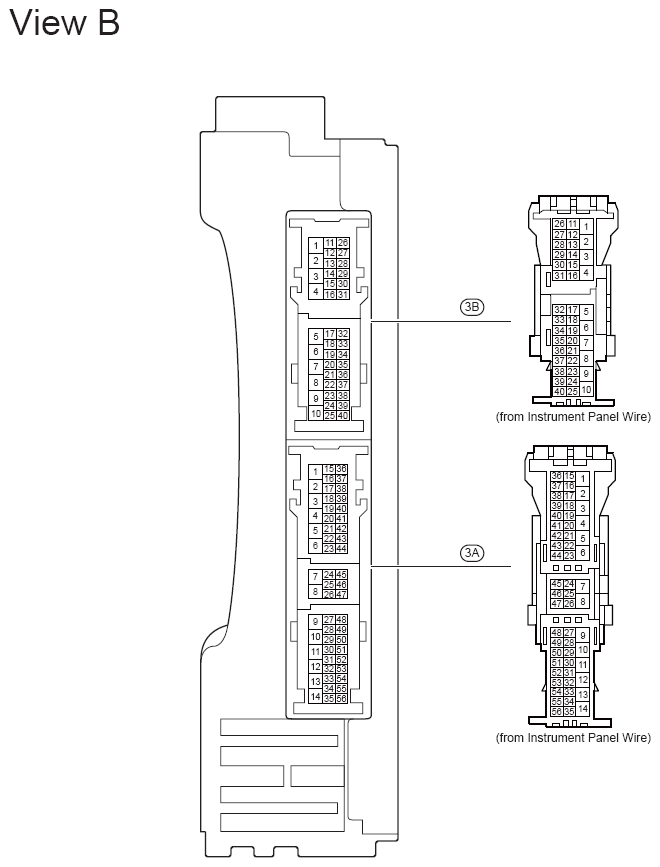

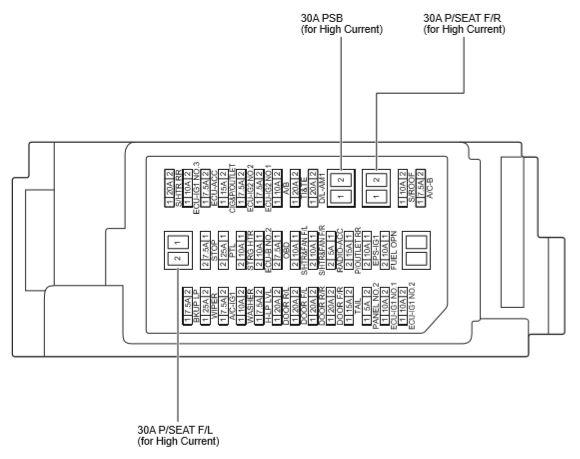

INSTRUMENT PANEL J/B FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 5A | PANEL NO. 2 | Illumination and Taillight |
| 5A | RADIO-ACC | Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/LEXUS Navigation System) |
| Audio System (w/o LEXUS Navigation System w/Accessory Meter Assembly) | ||
| Audio System (w/o LEXUS Navigation System w/Multimedia Module Display) and Parking Assist (Rear View Monitor w/o LEXUS Navigation System) | ||
| Clock | ||
| LEXUS ENFORM or Safety Connect | ||
| 7.5A | A/C-B | Air Conditioning |
| Front Window Deicer | ||
| 7.5A | A/C-IG1 | Air Conditioning |
| Audio System (w/o LEXUS Navigation System w/Accessory Meter Assembly) | ||
| Front Window Deicer | ||
| 7.5A | ECU-ACC | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Audio System (w/o LEXUS Navigation System w/Accessory Meter Assembly) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Illumination and Taillight | ||
| Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Interior Light | ||
| Light Reminder | ||
| Mirror Heater (w/Seat Position Memory) and Remote Control Mirror (w/Seat Position Memory) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Rear Sunshade | ||
| Remote Control Mirror (w/o Seat Position Memory) | ||
| Sliding Roof | ||
| Tire Pressure Warning System | ||
| Vehicle Proximity Notification System | ||
| 7.5A | ECU-IG2 NO. 1 | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/LEXUS Navigation System) | ||
| Audio System (w/o LEXUS Navigation System w/Accessory Meter Assembly) | ||
| Audio System (w/o LEXUS Navigation System w/Multi-Media Module Display) and Parking Assist (Rear View Monitor w/o LEXUS Navigation System) | ||
| Blind Spot Monitor System | ||
| Combination Meter | ||
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| EPS | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Hybrid System and Shift Control System | ||
| Illumination and Taillight | ||
| Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Interior Light | ||
| Lane Departure Alert | ||
| LEXUS ENFORM or Safety Connect | ||
| Light Reminder | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| Vehicle Proximity Notification System | ||
| Wiper and Washer (w/Auto Wiper System) | ||
| 7.5A | ECU-IG2 NO. 2 | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Hybrid System and Shift Control System | ||
| Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Lane Departure Alert | ||
| Power Trunk Opener and Closer | ||
| Pre-Collision System | ||
| 7.5A | H-LP LVL | Headlight Beam Level Control |
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | STOP | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Hybrid System and Shift Control System | ||
| Shift Lock | ||
| Stop Light | ||
| Vehicle Proximity Notification System | ||
| 10A | A/B | LEXUS ENFORM or Safety Connect |
| Seat Belt Warning | ||
| SRS | ||
| 10A | ECU-B NO. 2 | Power Window |
| Rear Sunshade | ||
| Tire Pressure Warning System | ||
| 10A | ECU-IG1 NO. 1 | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Back-Up Light | ||
| Cooling Fan | ||
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Front Fog Light | ||
| Front Window Deicer | ||
| Headlight | ||
| Hybrid System and Shift Control System | ||
| Lane Departure Alert | ||
| Mirror Heater (w/o Seat Position Memory) and Rear Window Defogger | ||
| Power Tilt and Power Telescopic | ||
| Pre-Collision System | ||
| Stop Light | ||
| Vehicle Proximity Notification System | ||
| 10A | ECU-IG1 NO. 2 | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/LEXUS Navigation System) | ||
| Audio System (w/o LEXUS Navigation System w/Multi-Media Module Display) and Parking Assist (Rear View Monitor w/o LEXUS Navigation System) | ||
| Automatic Glare-Resistant EC Mirror with Compass and Garage Door Opener | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent | ||
| Electric Tension Reducer | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Heated Steering Wheel System | ||
| Illumination and Taillight | ||
| Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Interior Light | ||
| Lane Departure Alert | ||
| Light Reminder | ||
| Mirror Heater (w/Seat Position Memory) and Remote Control Mirror (w/Seat Position Memory) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Rear Sunshade | ||
| Shift Lock | ||
| Sliding Roof | ||
| Tire Pressure Warning System | ||
| Vehicle Proximity Notification System | ||
| Wiper and Washer (w/Auto Wiper System) | ||
| 10A | ECU-IG1 NO. 3 | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Blind Spot Monitor System | ||
| Cruise Control, Dynamic Radar Cruise Control and Engine Control | ||
| Lane Departure Alert | ||
| Pre-Collision System | ||
| 10A | EPS-IG1 | EPS |
| 10A | FUEL OPN | Fuel Lid Opener |
| 10A | S/HTR&FAN F/L | Air Conditioning |
| Climate Control Seat and Seat Heater (w/Climate Control Seat) | ||
| Seat Heater (w/o Climate Control Seat) | ||
| 10A | S/HTR&FAN F/R | Climate Control Seat and Seat Heater (w/Climate Control Seat) |
| Seat Heater (w/o Climate Control Seat) | ||
| 10A | S/ROOF | Sliding Roof |
| 10A | STRG HTR | Heated Steering Wheel System |
| 10A | WASHER | Wiper and Washer (w/Auto Wiper System) |
| Wiper and Washer (w/o Auto Wiper System) | ||
| 15A | CIG&P/OUTLET | Power Outlet |
| 15A | P/OUTLET RR | Power Outlet |
| 15A | TAIL | Front Fog Light |
| Illumination and Taillight | ||
| 20A | D/L-AM1 | ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent | ||
| Front Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Illumination and Taillight | ||
| Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Interior Light | ||
| Light Reminder | ||
| Mirror Heater (w/Seat Position Memory) and Remote Control Mirror (w/Seat Position Memory) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Trunk Opener and Closer | ||
| Power Window | ||
| Rear Sunshade | ||
| Sliding Roof | ||
| Tire Pressure Warning System | ||
| Vehicle Proximity Notification System | ||
| 20A | DOOR F/L | Interior Light |
| Mirror Heater (w/Seat Position Memory) and Remote Control Mirror (w/Seat Position Memory) | ||
| Power Seat (Driver's Seat w/Seat Position Memory) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| 20A | DOOR F/R | Interior Light |
| Mirror Heater (w/Seat Position Memory) and Remote Control Mirror (w/Seat Position Memory) | ||
| Power Seat (Front Passenger's Seat w/Seat Position Memory) | ||
| Power Window | ||
| 20A | DOOR R/L | Power Window |
| 20A | DOOR R/R | Power Window |
| 20A | TI&TE | Power Tilt and Power Telescopic |
| 25A | PTL | Door Lock Control, Luggage Compartment Door Opener and Theft Deterrent |
| Power Trunk Opener and Closer | ||
| 25A | WIPER | Cruise Control, Dynamic Radar Cruise Control and Engine Control |
| Wiper and Washer (w/Auto Wiper System) | ||
| Wiper and Washer (w/o Auto Wiper System) | ||
| 30A | P/SEAT F/L | Power Seat (Driver's Seat w/Seat Position Memory) |
| Power Seat (Driver's Seat w/o Seat Position Memory) | ||
| 30A | P/SEAT F/R | Power Seat (Front Passenger's Seat w/Seat Position Memory) |
| Power Seat (Front Passenger's Seat w/o Seat Position Memory) | ||
