Fusible Link Block Assembly - Quarter Panel RH: Notes

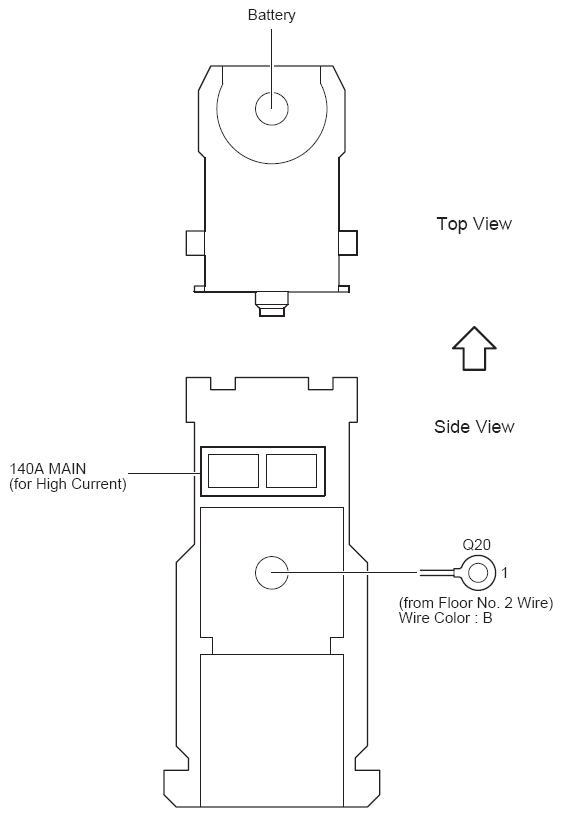

Fig 1: Fusible Link Block Assembly Fuses

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FUSIBLE LINK BLOCK ASSEMBLY FUSE IDENTIFICATION LEGEND

Fuse		System
140A	MAIN	ABS, Brake Assist, EBD, Hill-Start Assist Control, TRAC and VSC
		Back-Up Light
		Front Fog Light
		Headlight
		Mirror Heater (w/o Seat Position Memory) and Rear Window Defogger
		Stop Light
		Vehicle Proximity Notification System
