Visual Mute Signal Circuit between Navigation Receiver Assembly and Multi-display [07/2015 - 08/2016]: Procedure

1. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition

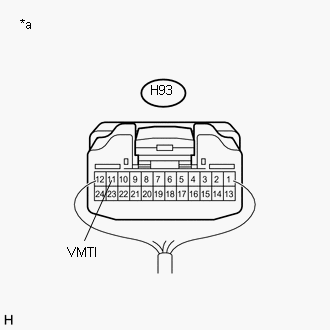

   H93-11 (VMTI) - Body ground	Power switch on (ACC) Screen display changes	3.5 V or higher → Below 1 V → 3.5 V or higher

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Multi-display Assembly)

Result:  OK

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Refer to PROBLEM SYMPTOMS TABLE [07/2015 - 08/2016]

Result:  NG

NG

See step  2

1. Disconnect the H97 radio receiver assembly connector.
2. Disconnect the H93 multi-display assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H97-10 (VMTF) - H93 -11 (VMTI)	Always	Below 1 Ω
   H97-10 (VMTF) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  3

1. Replace the multi-display assembly with a new or known good one. Refer to REMOVAL [07/2015 - ]
2. Check that the screen display is normal.

   OK

   Screen display is normal.

Result:  OK

OK

END

Result:  NG

NG

REPLACE RADIO RECEIVER ASSEMBLY

Refer to REMOVAL [07/2015 - ]
