Navigation Receiver Assembly Power Source Circuit [07/2015 - 08/2016]: Wiring Diagram

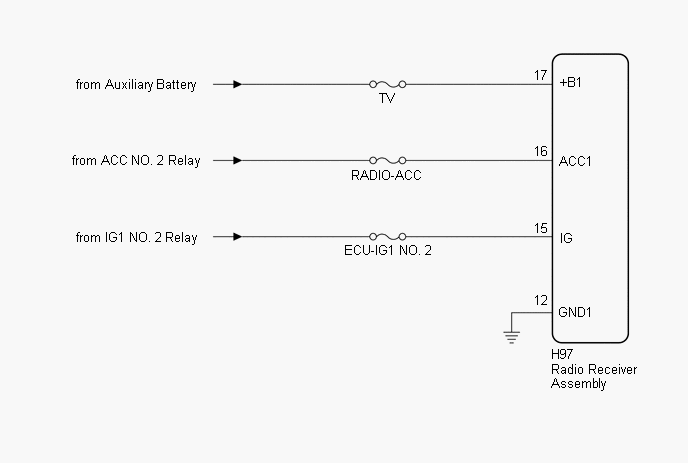

Fig 1: Navigation Receiver Assembly Power Source Wiring Diagram

GTY668749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
