System Diagram [07/2015 - ]

  1. DOOR BUS LINES

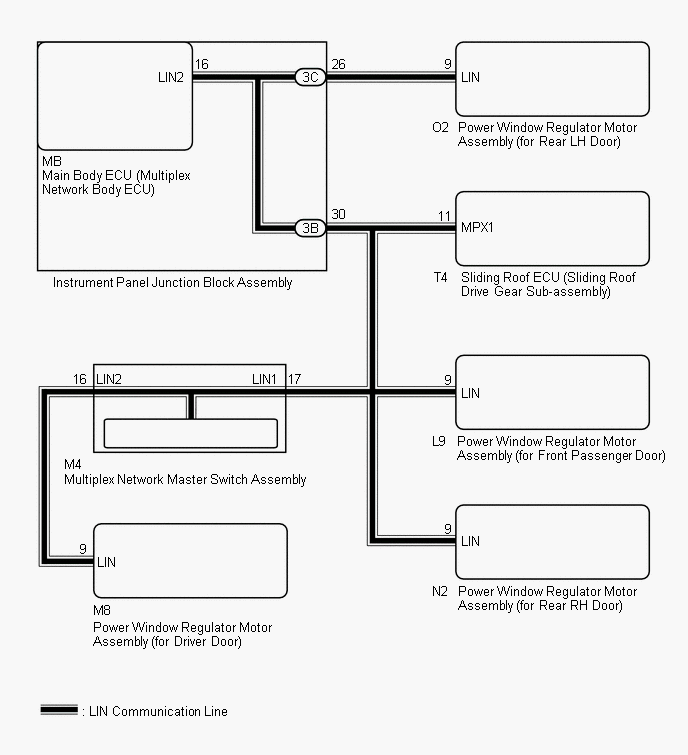

    Fig 1: Door BUS Lines Wiring Diagram
    GTY659282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION BUS LINES

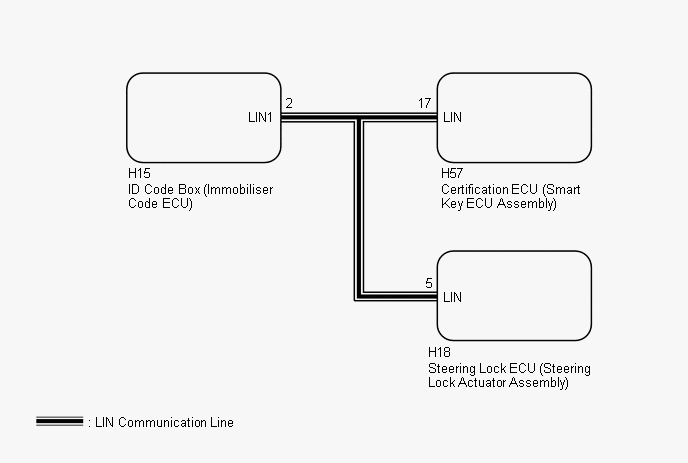

    Fig 2: Certification BUS Lines Wiring Diagram
    GTY681488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
