Steering Angle Sensor Communication Stop Mode (2016 - 2017): Wiring Diagram

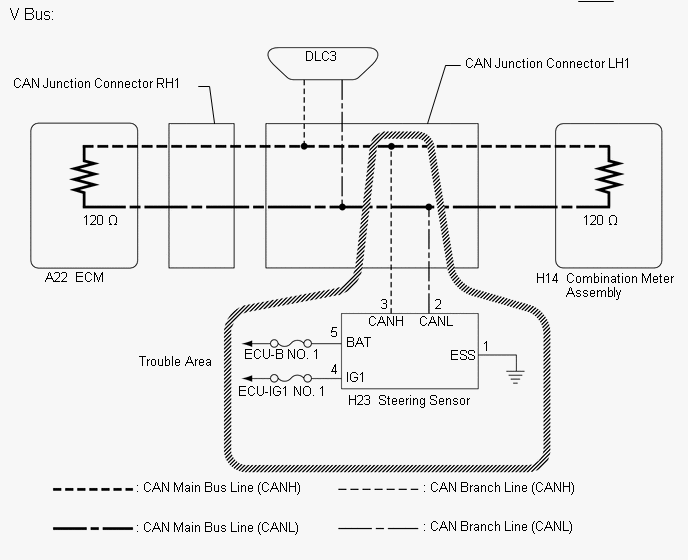

Fig 1: Steering Sensor Wiring Diagram

GTY624645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
