Power Steering ECU Communication Stop Mode (2016 - 2017): Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the c1 power steering ECU with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition

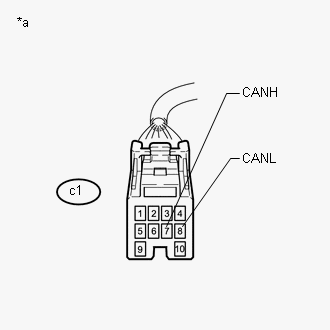

   c1-7 (CANH) - c1-8 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Power Steering ECU with Motor Assembly)

Result:  NG

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (POWER STEERING ECU WITH MOTOR ASSEMBLY)

Result:  OK

OK

See step  2

1. Disconnect the c2 power steering ECU with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition

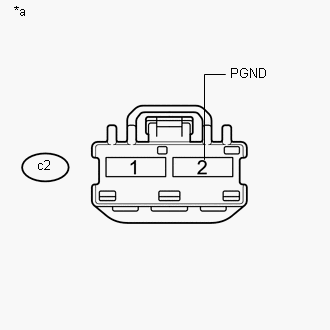

   c2-2 (PGND) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Power Steering ECU with Motor Assembly)

3. Connect the cable to the negative (-) auxiliary battery terminal.
4. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition

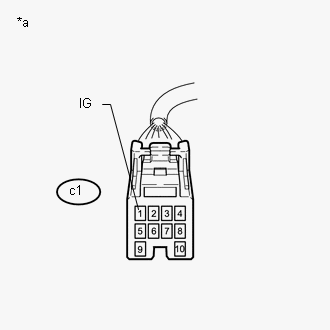

   c1-1 (IG) - Body ground	Power switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Power Steering ECU with Motor Assembly)

Result:  OK

OK

REPLACE POWER STEERING ECU WITH MOTOR ASSEMBLY

(Refer to REMOVAL (2016 - 2017) )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
