Open in CAN Main Bus Line (2016 - 2017): Procedure
- CHECK FOR OPEN IN CAN BUS LINES (DLC3 BRANCH LINE)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

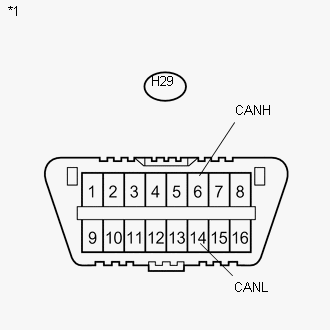

Tester Connection Condition Specified Condition H29-6 (CANH) - H29-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω TEXT IN ILLUSTRATION*1 DLC3 NOTE:When the measured value is 133 Ω or higher and a CAN communication system DTC is output, there may be a fault besides disconnection of the DLC3 branch line. For that reason, troubleshooting should be performed again from How to Proceed with Troubleshooting after repairing the trouble area (Refer to HOW TO PROCEED WITH TROUBLESHOOTING (2016 - 2017) ).
Result: NG
NG
REPAIR OR REPLACE CAN BRANCH LINE CONNECTED TO DLC3
Result: OK
See step 2
- CHECK FOR OPEN IN CAN BUS LINES (ECM - CAN J/C RH1)
- Disconnect the A22 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

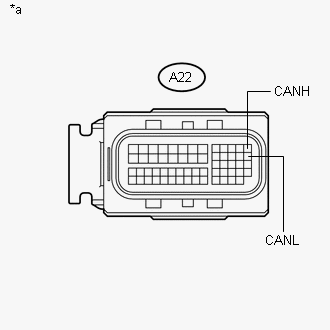

Tester Connection Condition Specified Condition A22-13 (CANH) -A22-26 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to ECM)
Result: OK
OK
REPLACE ECM
(Refer to REMOVAL (2016 - 2017) )
Result: NG
See step 3
- Disconnect the A22 ECM connector.
- CHECK FOR OPEN IN CAN BUS LINES (COMBINATION METER ASSEMBLY - CAN J/C LH1)
- Reconnect the A22 ECM connector.
- Disconnect the H14 combination meter assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

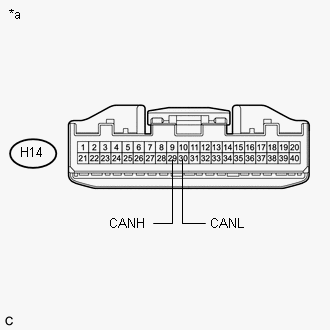

Tester Connection Condition Specified Condition H14-29 (CANH) - H14-30 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Combination Meter Assembly)
Result: OK
OK
REPLACE COMBINATION METER ASSEMBLY
(Refer to REMOVAL (2016 - 2017) )
Result: NG
See step 4
- CHECK FOR OPEN IN CAN BUS LINES (CAN J/C LH1)
- Reconnect the H14 combination meter assembly connector.
- Disconnect the H192 CAN junction connector LH1.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

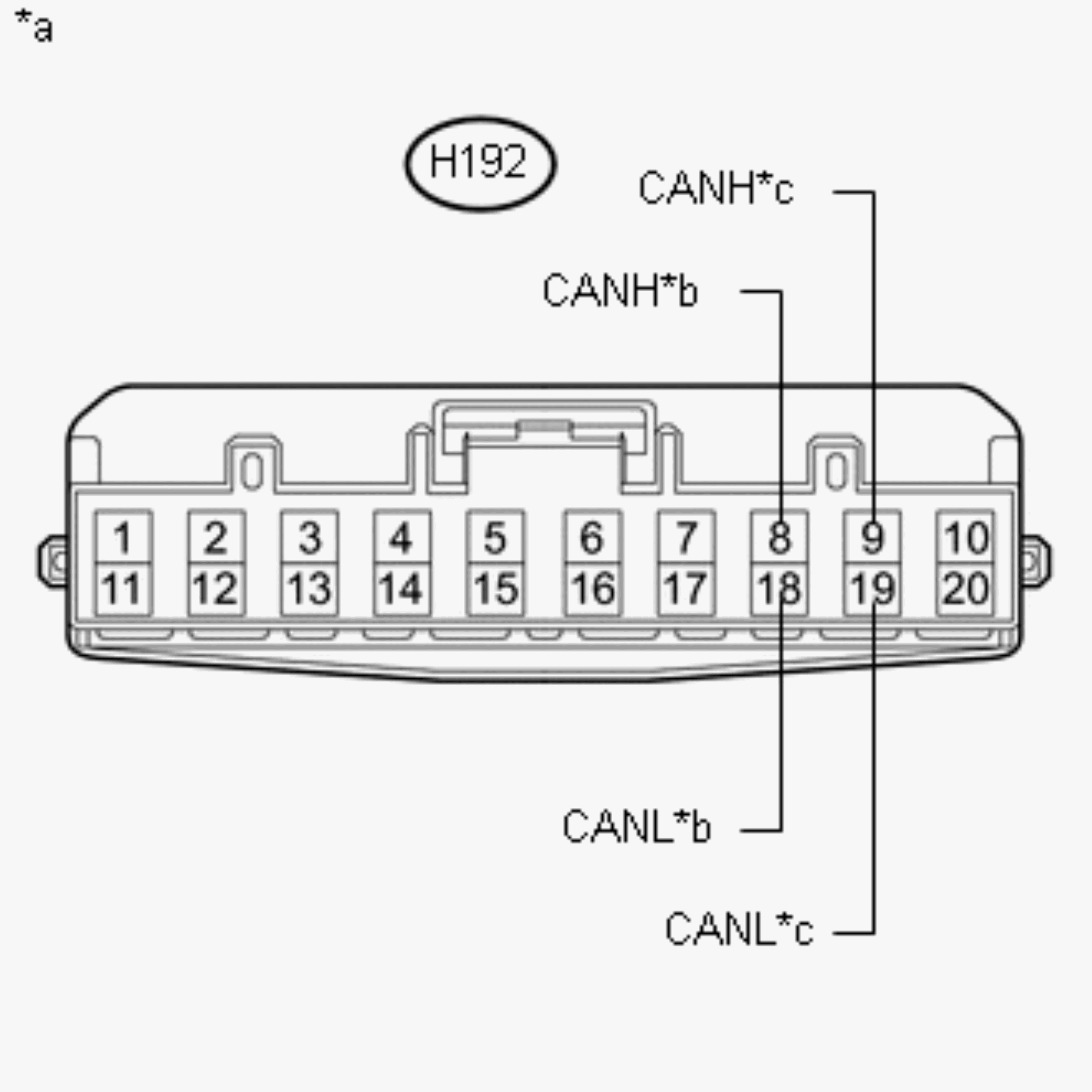

Tester Connection Condition Specified Condition Connected to H192-8 (CANH) - H192-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω Combination meter assembly H192-9 (CANH) -H192-19 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω CAN junction connector RH1 TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to CAN Junction Connector LH1)*b to Combination Meter Assembly *c to CAN Junction Connector RH1 NOTE:- Before disconnecting the connectors, make a note of where they are connected.
- Reconnect each connector to its original position.
Result
Result Proceed to OK A NG (Combination meter assembly main line) B NG (CAN junction connector RH1 main line) C
Result: A
A
REPLACE CAN JUNCTION CONNECTOR LH1
Result: B
B
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (CAN J/C LH1 - COMBINATION METER ASSEMBLY)
Result: C
See step C
- CHECK FOR OPEN IN CAN BUS LINES (CAN J/C RH1)
- Reconnect the H192 CAN junction connector LH1.
- Disconnect the H122 CAN junction connector RH1.
- Disconnect the H125 CAN junction connector RH1.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

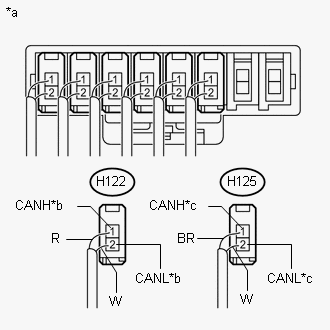

Tester Connection Condition Specified Condition Connected to H122-1 (CANH) - H122-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω CAN junction connector LH1 H125-1 (CANH) - H125-2 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω ECM Wiring Color
Code Color (CANH Side) Color (CANL Side) Connected to H122 R W CAN junction connector LH1 H125 B W ECM TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to CAN junction Connector RH1)*b to CAN junction Connector LH1 *c to ECM NOTE:- Before disconnecting the connectors, make a note of where they are connected.
- Reconnect each connector to its original position.
Result
Result Proceed to OK A NG (CAN junction connector LH1 main line) B NG (ECM main line) C
Result: A
A
REPLACE CAN JUNCTION CONNECTOR RH1
Result: B
B
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (CAN J/C LH1 - CAN J/C RH1)
Result: C
C
REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (CAN J/C RH1 - ECM)
