DTC U1002: Lost Communication with Gateway Module (Main Body ECU) (2016 - 2017): Wiring Diagram

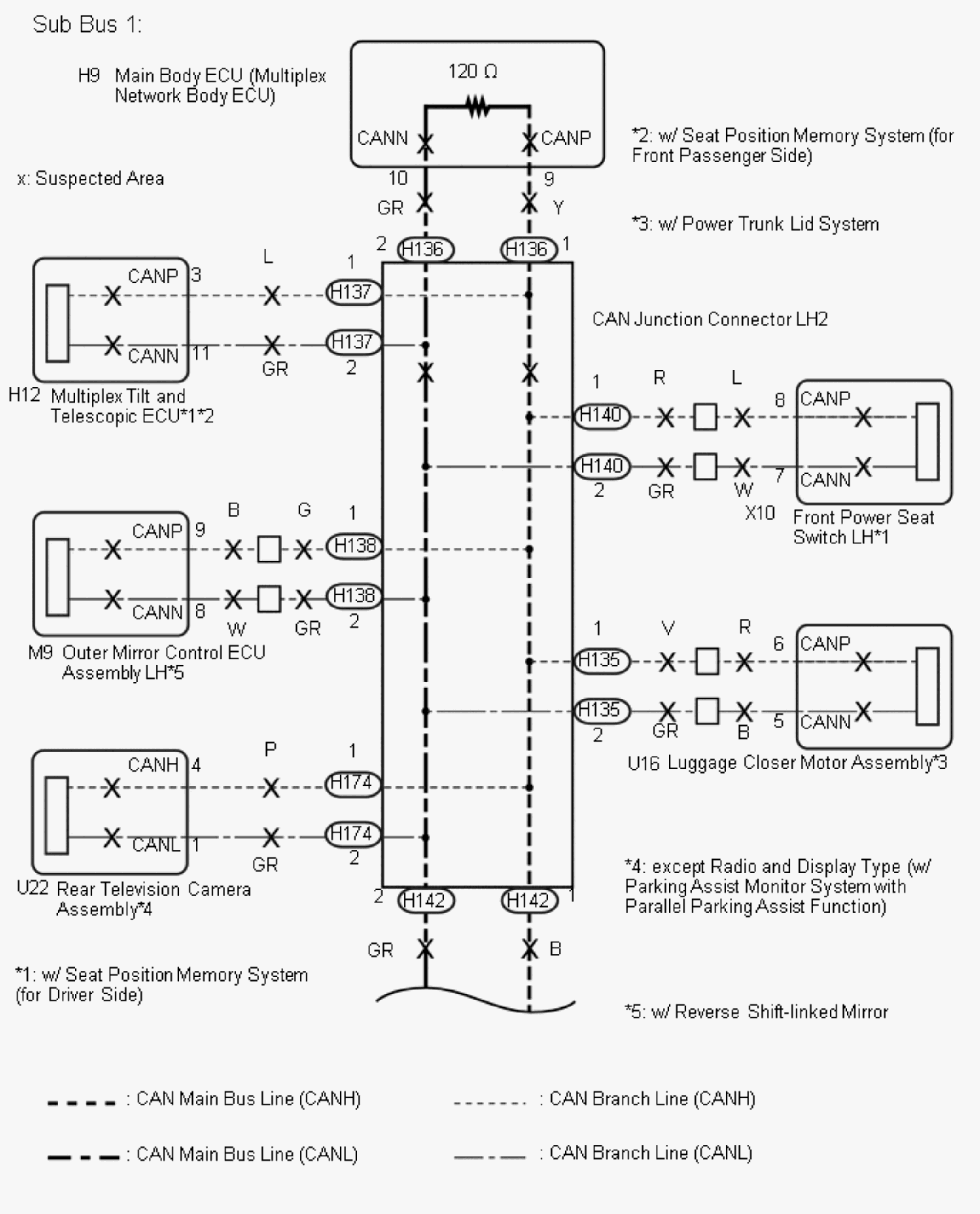

Fig 1: Multiplex Network Body ECU Wiring Diagram (1 or 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

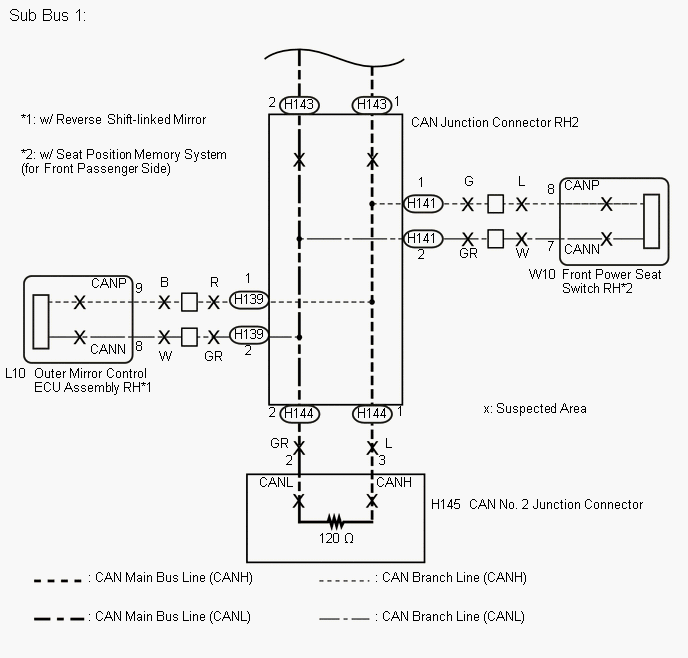

Fig 2: Multiplex Network Body ECU Wiring Diagram (2 or 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
