DTC U0208: Lost Communication with "Seat Control Module A" (2016 - 2017): Wiring Diagram

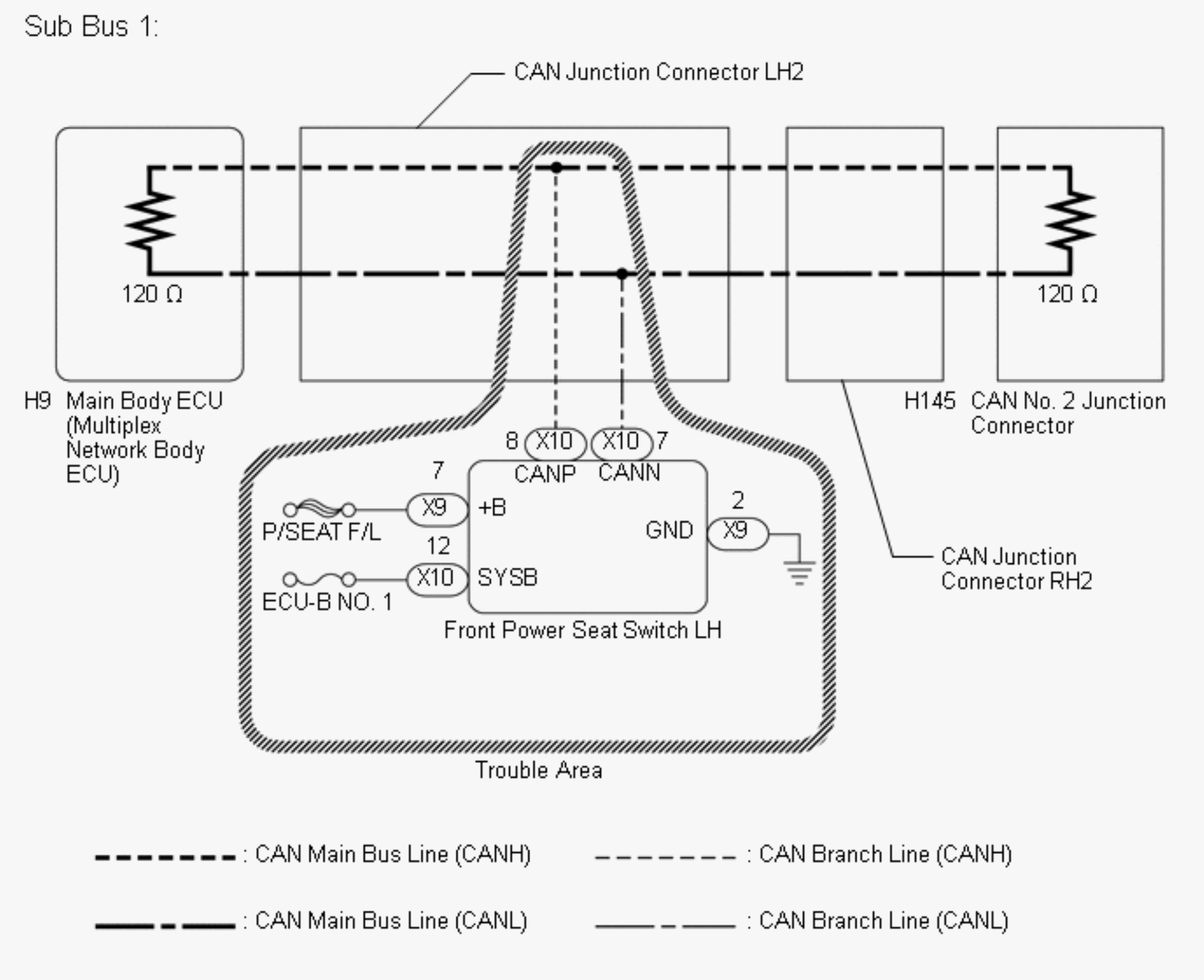

Fig 1: Front Power Seat Wiring Diagram

GTY614901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
