DTC U0129: Lost Communication with Brake System Control Module (2016 - 2017): Wiring Diagram

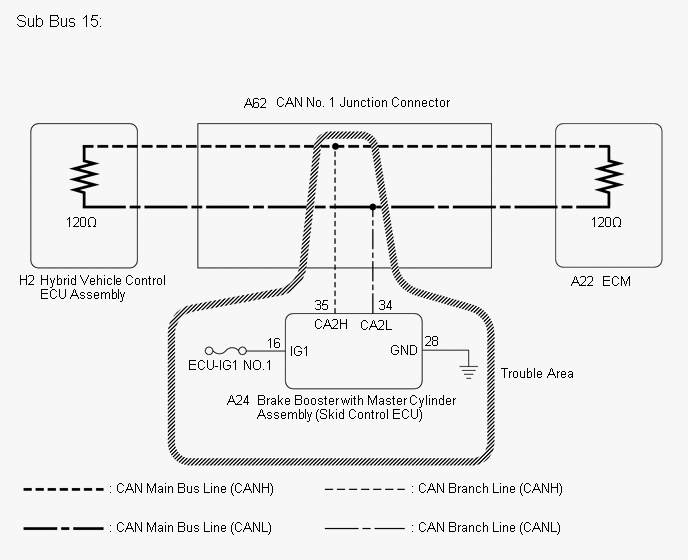

Fig 1: Skid Control ECU Wiring Diagram

GTY631567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
