Certification ECU Communication Stop Mode (2016 - 2017): Procedure
- CHECK FOR OPEN IN CAN BUS LINES (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) BRANCH LINE)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the H57 certification ECU (smart key ECU assembly) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

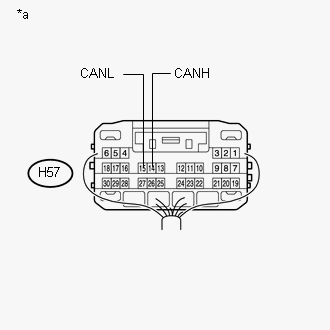

Tester Connection Condition Specified Condition H57-14 (CANH) - H57-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly)
Result: NG
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
Result: OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Disconnect the A70 certification ECU (smart key ECU assembly) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A70-11 (E) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω - Connect the cable to the negative (-) auxiliary battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage

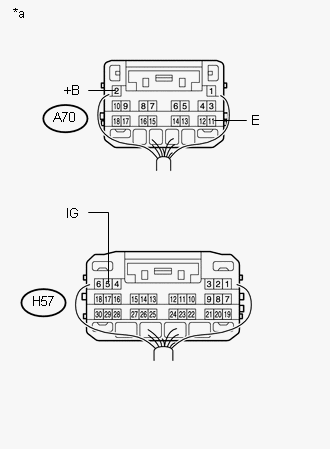

Tester Connection Condition Specified Condition A70-2 (+B) - Body ground Power switch off 11 to 14 V H57-5 (IG) - Body ground Power switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to Certification ECU (Smart Key ECU Assembly)
Result: OK
OK
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(Refer to REMOVAL (2016 - 2017) )
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
