AFS ECU Communication Stop Mode (2016 - 2017): Wiring Diagram

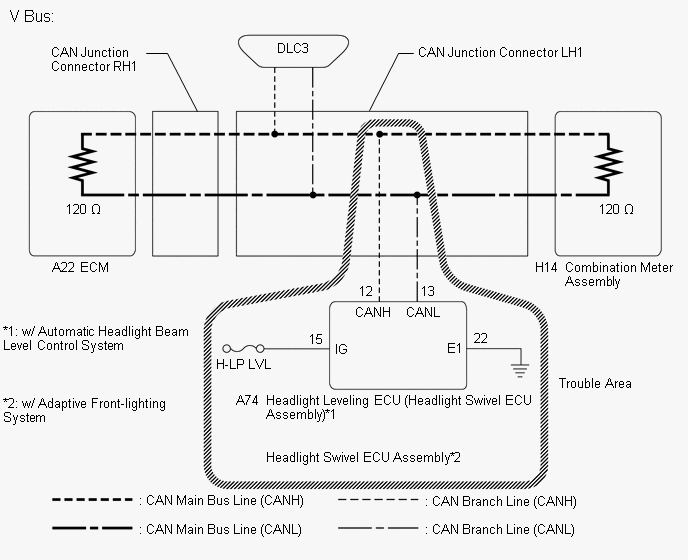

Fig 1: Headlight swivel ECU Wiring Diagram

GTY658580

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
