Blind Spot Monitor Sensor Communication Stop Mode [07/2015 - ]: Wiring Diagram

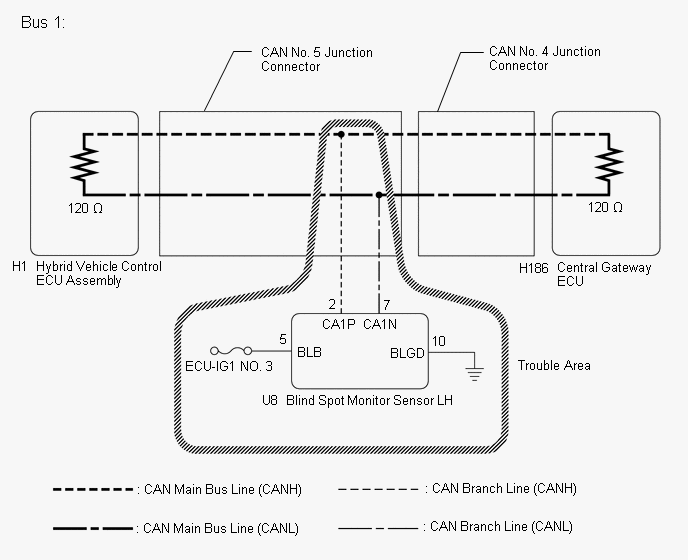

Fig 1: Blind Spot Monitor Sensor LH Wiring Diagram

GTY664742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
