Blind Spot Monitor Sensor Communication Stop Mode [07/2015 - ]: Procedure

1. Disconnect the cable from the negative (-) auxiliary battery terminal.
2. Disconnect the U8 blind spot monitor sensor LH connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U8-2 (CA1P) - U8-7 (CA1N)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

Result:  NG

NG

REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (BLIND SPOT MONITOR SENSOR LH)

Result:  OK

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   U8-10 (BLGD) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

2. Reconnect the cable to the negative (-) auxiliary battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   U8-5 (BLB) - Body ground	Power switch on (IG)	11 to 14 V

   TEXT IN ILLUSTRATION

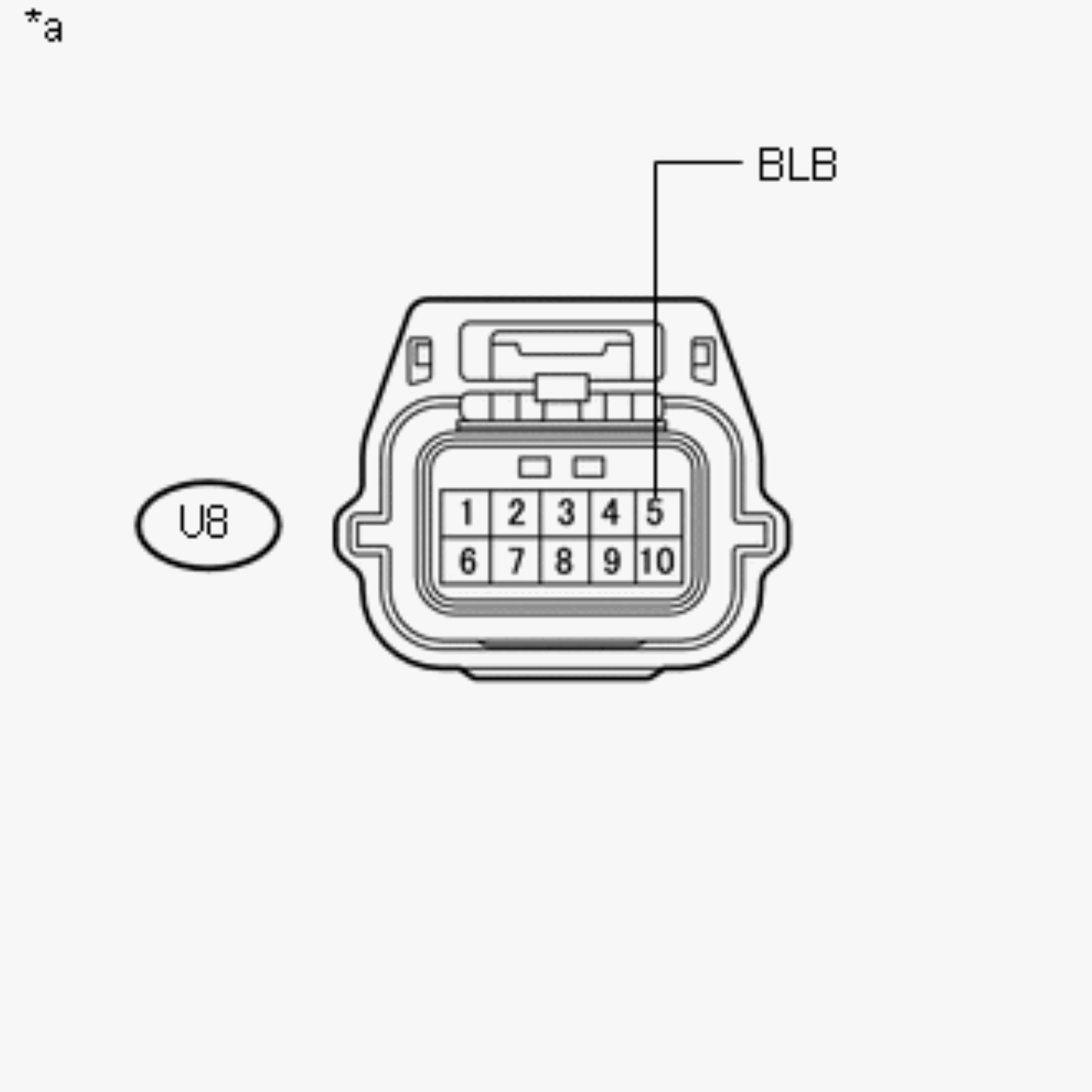

   *a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH)

Result:  OK

OK

REPLACE BLIND SPOT MONITOR SENSOR LH

(See page . Refer to REMOVAL [07/2015 - ] )

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
