Audio Receiver Assembly Communication Stop Mode [07/2015 - ]: Wiring Diagram

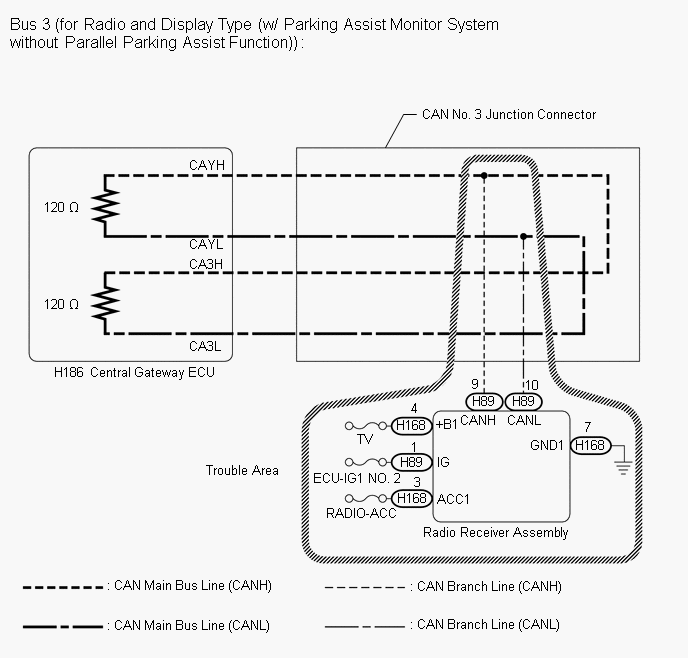

Fig 1: Radio Receiver Assembly (For Radio And Display Type (W/ Park Assist W/O Parallel Park Assist)) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

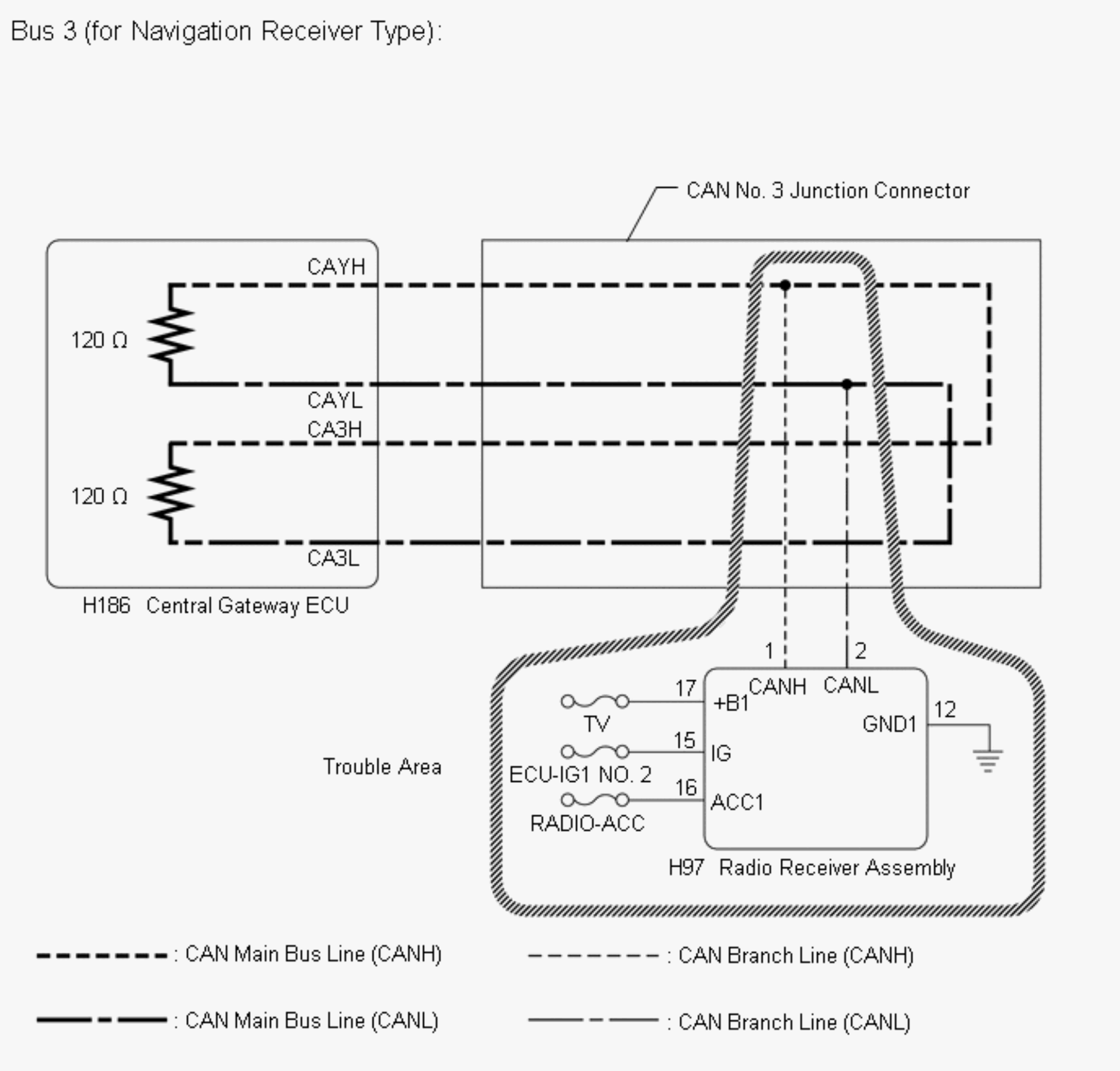

Fig 2: Radio Receiver Assembly (For Navigation Type) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

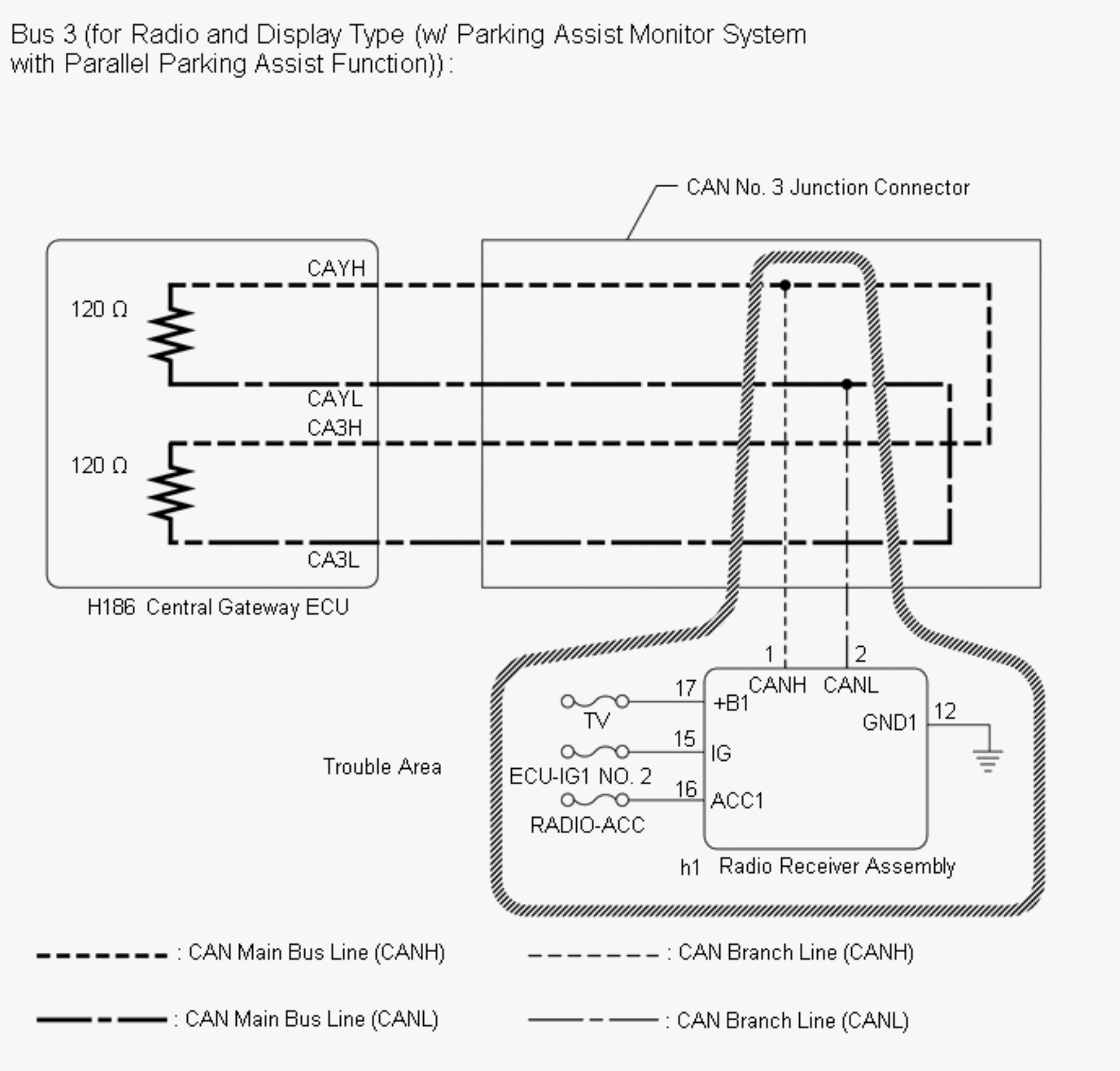

Fig 3: Radio Receiver Assembly (For Radio And Display Type (W/ Park Assist W/ Parallel Park Assist)) Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
