DTC U023A: Lost Communication with Front Camera Module [07/2015 - ]: Wiring Diagram

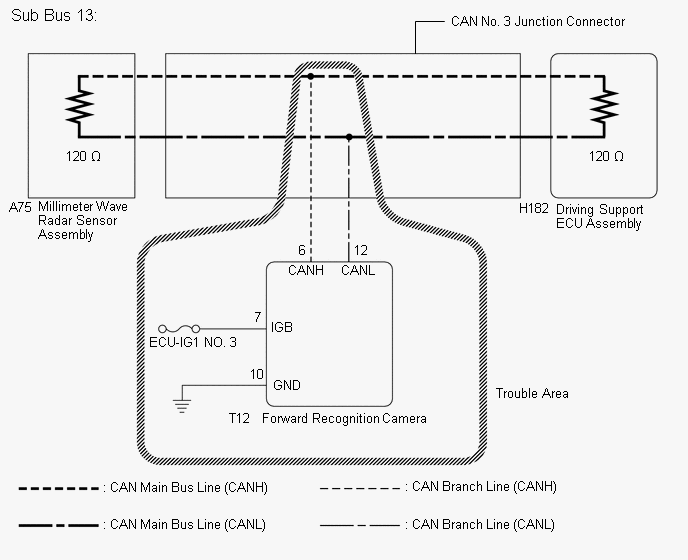

Fig 1: Forward Recognition Camera Wiring Diagram

GTY630936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
