DTC U0129: Lost Communication with Brake System Control Module [07/2015 - ]: Wiring Diagram

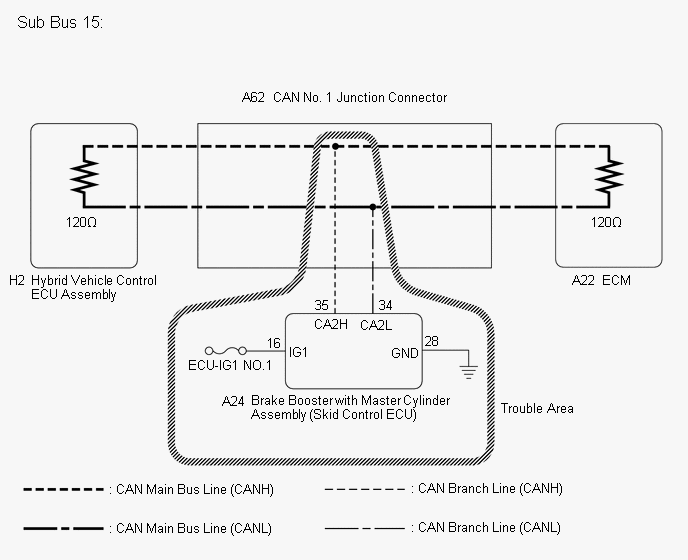

Fig 1: Brake Booster With Master Cylinder Assembly (Skid Control ECU) Wiring Diagram
GTY676701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
