DTC B2285: Steering Lock Position Signal Circuit Malfunction [07/2015 - ]: Wiring Diagram

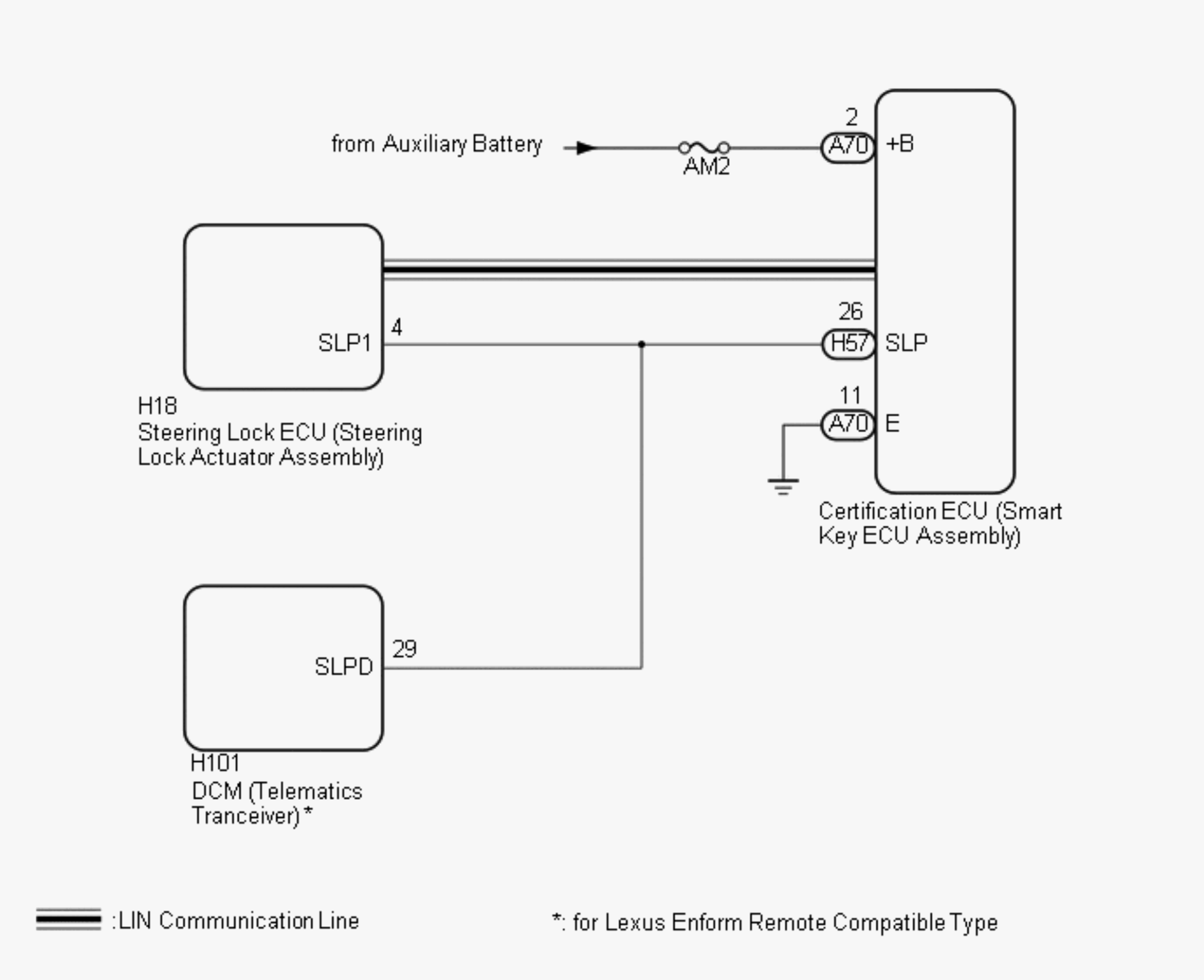

Fig 1: Steering Lock ECU (Steering Lock Actuator Assembly) Wiring Diagram
GTY612101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
